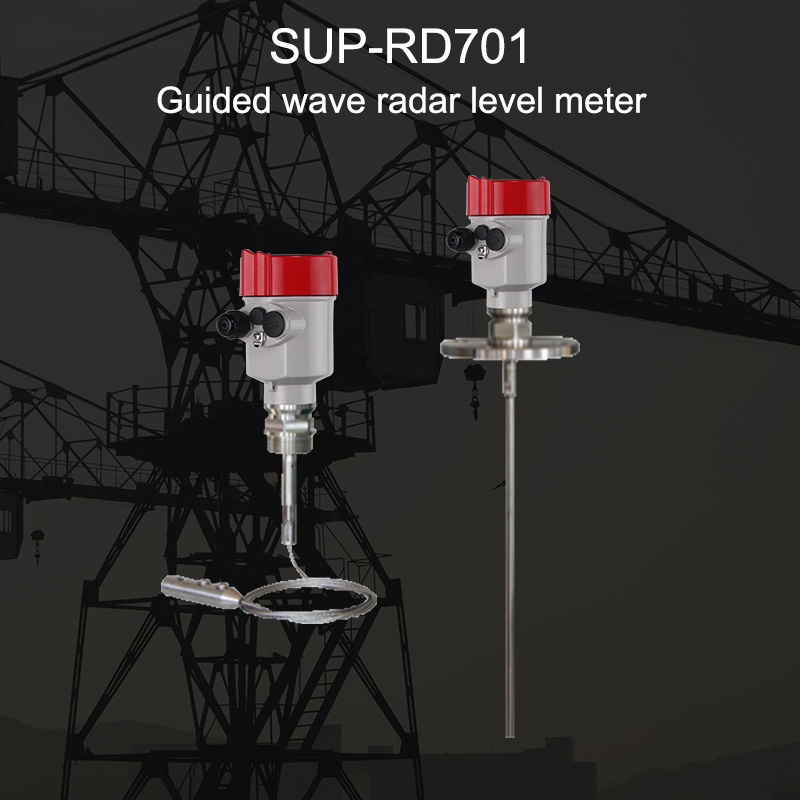

SUP-RD701 Guided wave radar level meter

SUP-RD701 Guided wave radar level meter

short description:

SUP-RD701 Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. Features

  • Range:0~30 m
  • Accuracy: ±10mm
  • Application: Liquids and bulk solids
  • Frequency Range: 500MHz ~ 1.8GHz

Tel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com

Product Detail

Product Tags

  • Specification
 Product Guided wave radar level meter
 Model SUP-RD701
 Measure range 0-30 meters
 Application Liquids and bulk solids
 Process Connection Thread/ Flange
 Medium Temperature -40℃~130℃(Standard)/-40~250℃(High temp)
 Process Pressure -0.1 ~ 4MPa
 Accuracy ±10mm
 Protection Grade IP67
 Frequency Range 500MHz-1.8GHz
 Signal Output 4-20mA (Two-wire/Four)
 Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
  • Introduction

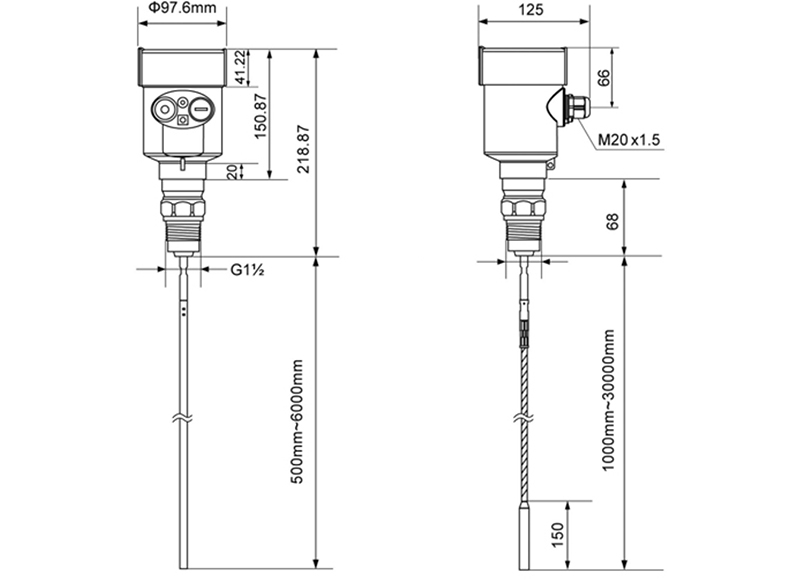

  • Product Size

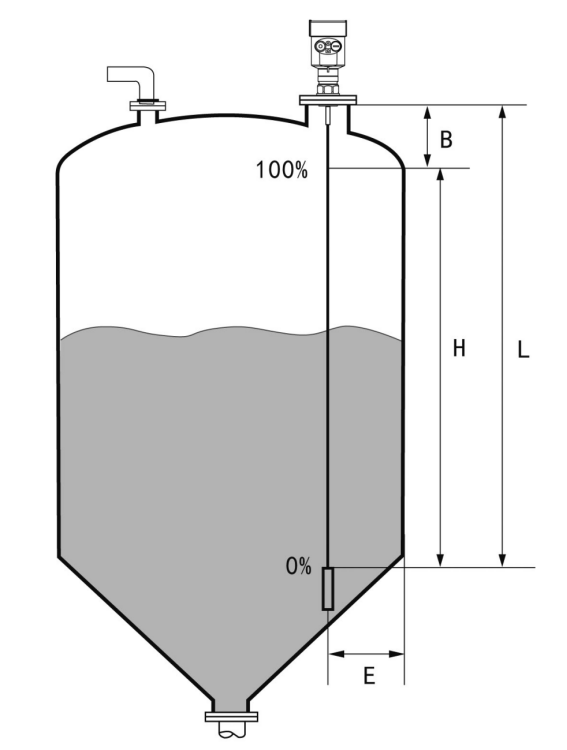

  • Installation guide

H—-Measuring range

L—-Empty tank height

B—-Blind area

E—-Minimum distance from probe to tank wall >50mm


The top Blind area refers to the minimum distance between the highest material surface of the material and the measurement reference point.

Blind area at the bottom refers to a distance that cannot be accurately measured near the bottom of the cable.

The effective measurement distance is between the top Blind area and the bottom Blind area.
