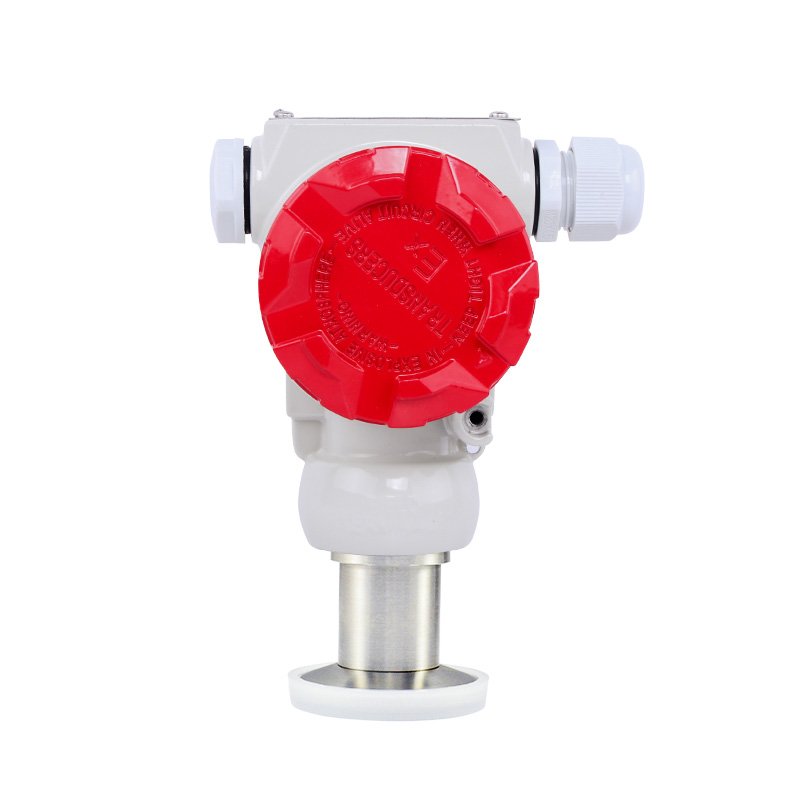

SUP-P450 2088 Membrane pressure transmitter

SUP-P450 2088 Membrane pressure transmitter

short description:

SUP-P450 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. Features Range:-0.1~ 0 ~ 40MPaResolution:0.5% F.SOutput signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485Installation: ClampPower supply:24VDC (9 ~ 36V)


Product Detail

Product Tags

  • Specification
 Product Pressure transmitter
 Model SUP-P450
 Measure range -0.1~0 to 0 ~ 40MPa
 Indication  resolution 0.5%
 Ambient temperature -10 ~ 85 ℃
 Output signal 4-20mA analog output
 Pressure type Gauge pressure; Absolute pressure
 Measure medium Liquid; Gas; Oil etc
 Pressure overload 150%FS
 Power DC24
  • Introduction

SUP-P400 Digital Smart LED/LCD display with shell Industrial Pressure Transmitter
