SUP-RD902T 26GHz Radar level meter

SUP-RD902T 26GHz Radar level meter

short description:

SUP-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

Features

  • Range:0~20 m
  • Accuracy: ±3mm
  • Application: Liquid
  • Frequency Range: 26GHz


Product Detail

Product Tags

  • pecification
 Product Radar level meter
 Model SUP-RD902T
 Measure range 0-20 meters
 Application Liquid
 Process Connection Thread, Flange
 Medium Temperature -40℃~130℃(Standard type), -40℃~250℃(High temp type)
 Process Pressure -0.1~2.0MPa
 Accuracy ±10mm
 Protection Grade IP67
 Frequency Range 26GHz
 Signal Output 4-20mA
RS485/Modbus
 Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
  • Introduction

SUP-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

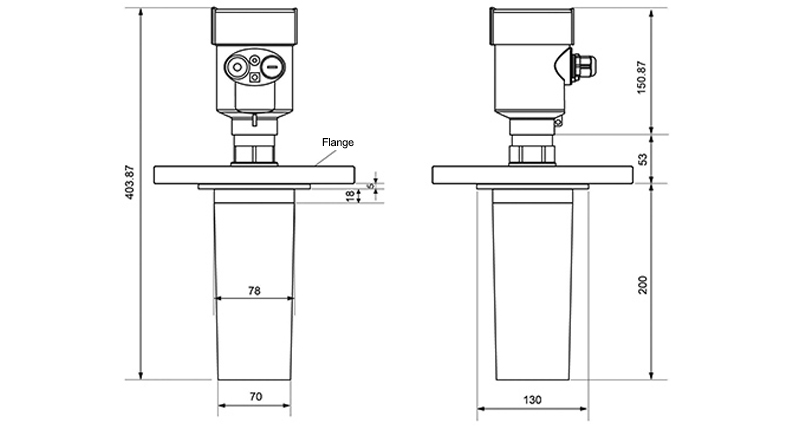

  • Product Size



  • Installation guide
dddd
Be installed in the diameter of the 1/4 or 1/6.Note: The minimum distance from the tank

wall should be 200mm.

Note:  ① datum

②The container center or axis of symmetry

The top conical tank level, can be installed atthe top of the tank is intermediate, can guarantee

the measurement to the conical bottom

 A feed antenna to the vertical alignment surface.If the surface is rough, stack angle must be used

to adjust the angle of cardan flange of the antenna

to the alignment surface.

(Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.)
