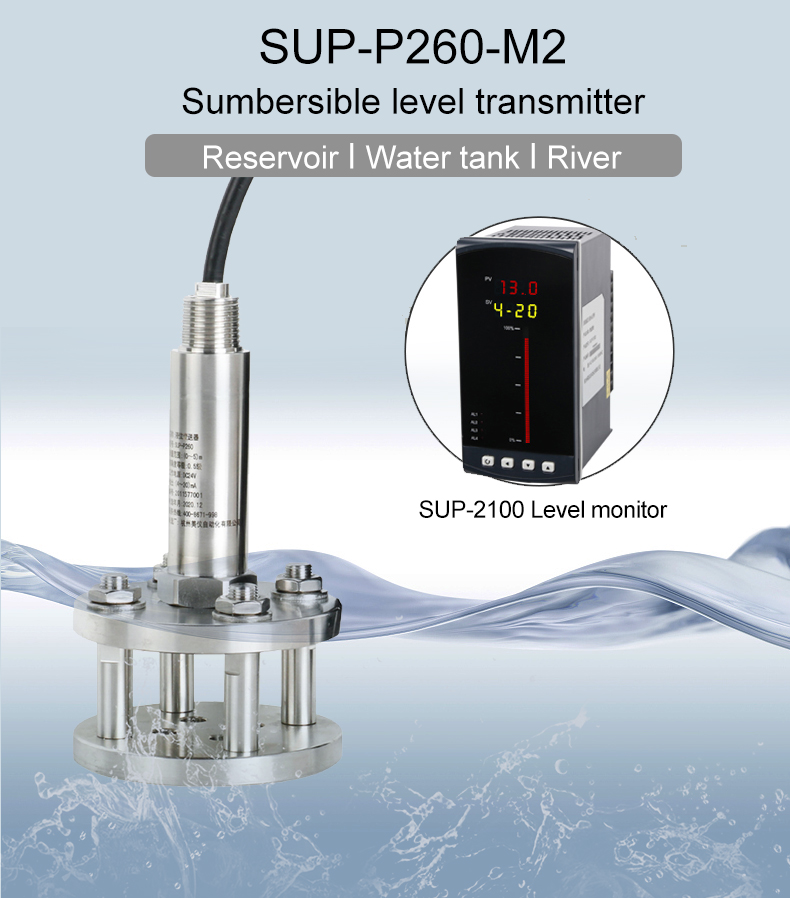

SUP-P260-M2 Slurry level sensor submersible level transmitter

SUP-P260-M2 Slurry level sensor submersible level transmitter

short description:

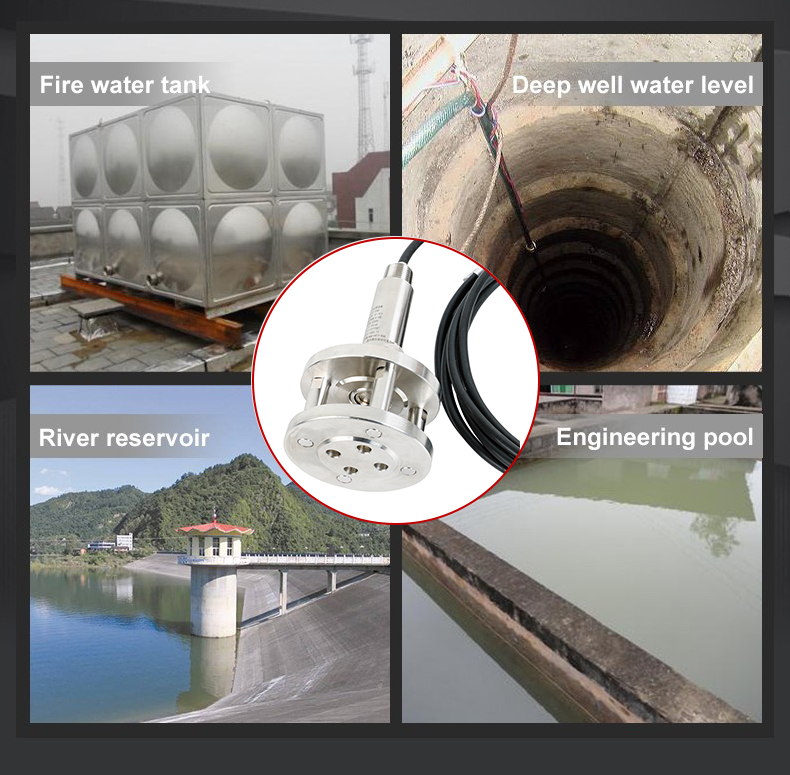

SUP-P260-M2 Slurry level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater leverl and so on, common accuracy is 0.5%FS,with voltage or 4-20mA output signalsused. Durable 316 SS construction for reliable, long life in harsh environments. Features Range:0 ~ 100mResolution:0.5% F.SOutput signal: 4~20mAPower supply:24VDCTel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com


Product Detail

Product Tags

  • Features

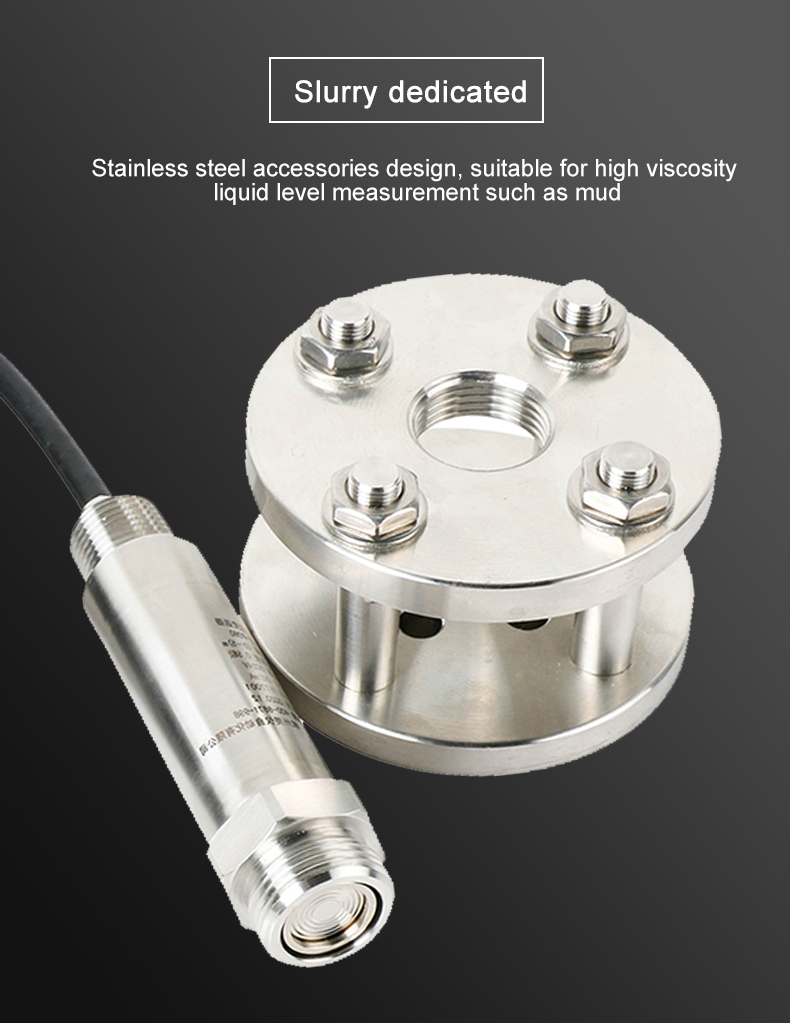

  1. Non-clogging and damage resistant to floating solids
  2. Durable 316 SS construction for reliable, long life in harsh environments
  3. 1/2 inch NPT threaded connection, allows the unit to be installed in a pipe/conduit

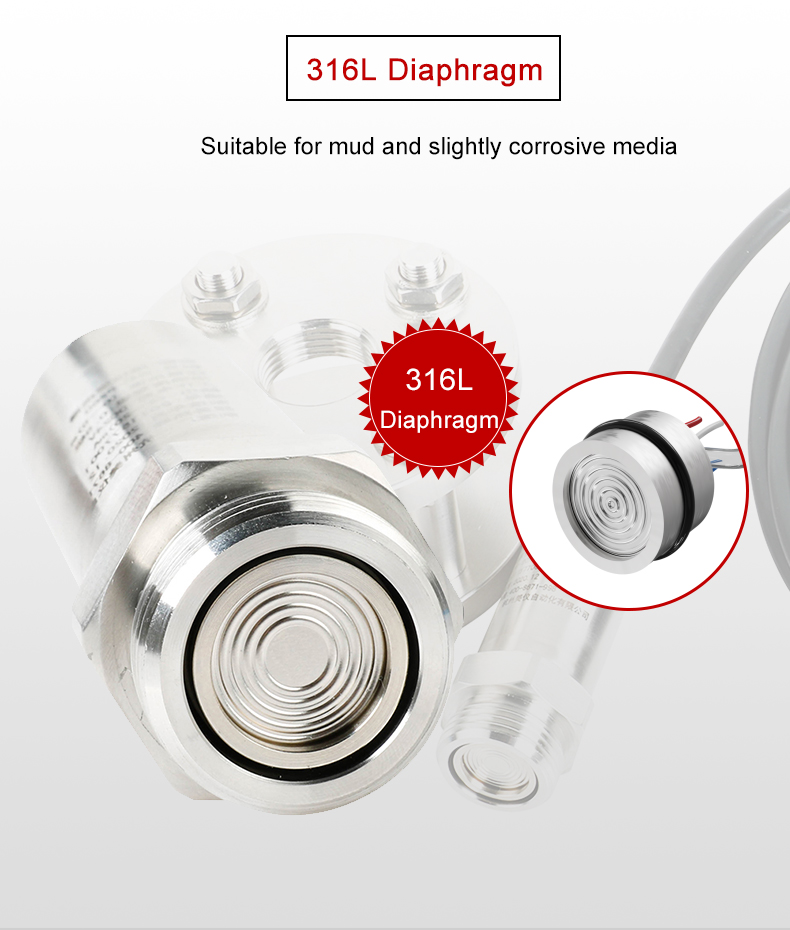

  4. Diaphragm is protected from physical damage and turbulence
  5. Added weight helps hold transmitter in place
  6. Excellent chemical compatibility for wide application use
  • Specification
 Product Slurry level transmitter
 Model SUP-P260-B
 Measuring range 0m-0.5m-100m
 Display resolution 0.5%
 Ambient temperature 0℃~50℃,-10℃~65℃
 Output signal 4mA-20mA,0V-5V(Customized)
 Pressure overload 200%FS
 Power supply 12VDC-30VDC
 Medium temperature -30℃~65℃
 Overall material Body: 304 SS, 316L SS;
Cable: PE, PU, PTFE
