SUP-RD908 Radar level meter for river

SUP-RD908 Radar level meter for river

short description:

SUP-RD908 Radar level meter with top-down installation of a Micropilot sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications. Features

  • Range:0~30 m
  • Accuracy: ±3mm

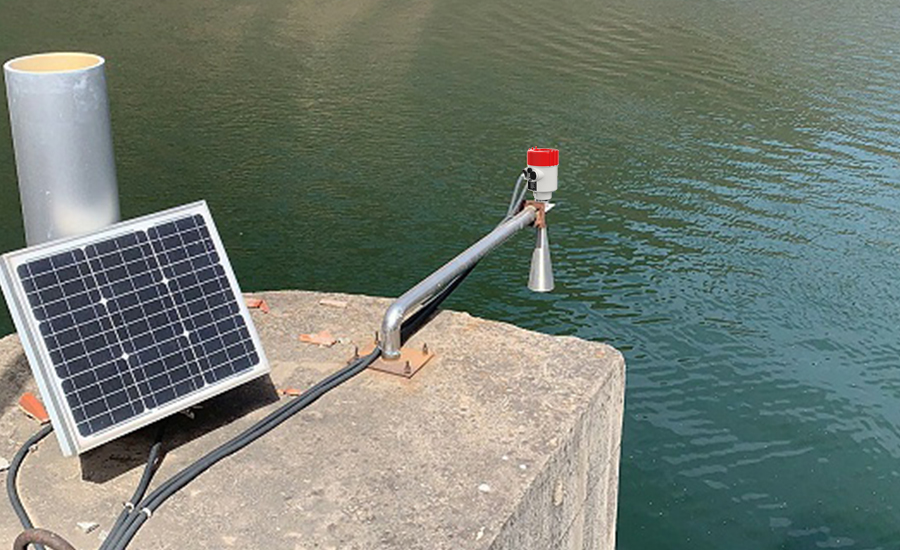

  • Application: Rivers, Lakes, Shoal
  • Frequency Range: 26GHz

Tel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com


Product Detail

Product Tags

  • Specification
 Product Radar level meter
 Model SUP-RD908
 Measure range 0-30 meters
 Application Rivers, Lakes, Shoal
 Process Connection Thread G1½ A”/frame /flange
 Medium Temperature -20℃~100℃
 Process Pressure Normal pressure

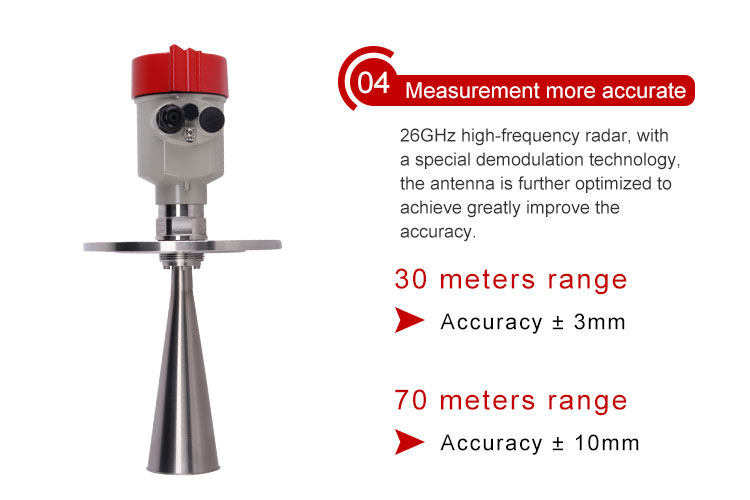

 Accuracy ±3mm
 Protection Grade IP67
 Frequency Range 26GHz
 Signal Output 4-20mA
RS485/Modbus
 Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
  • Introduction

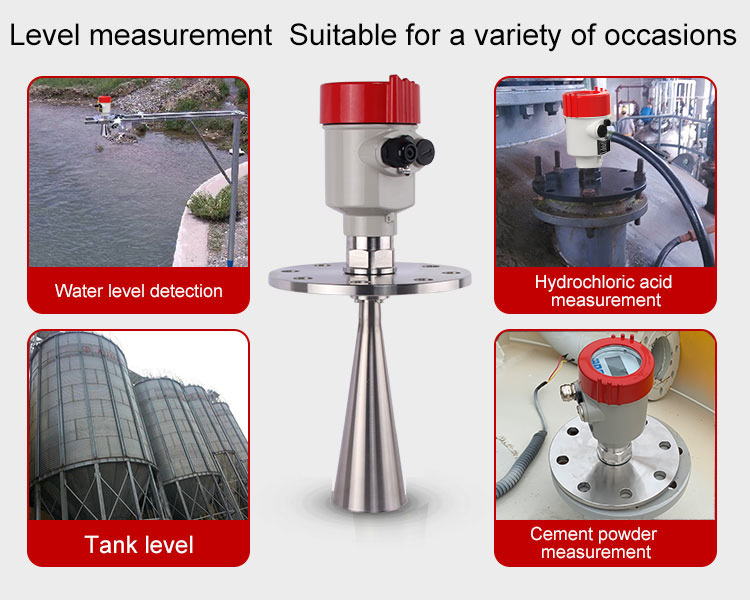

SUP-RD908 Radar level meter is a safe solution even under extreme process conditions (pressure, temperature) and vapors. It can also be used in hygienic applications for non-contact level measurement. it versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry.

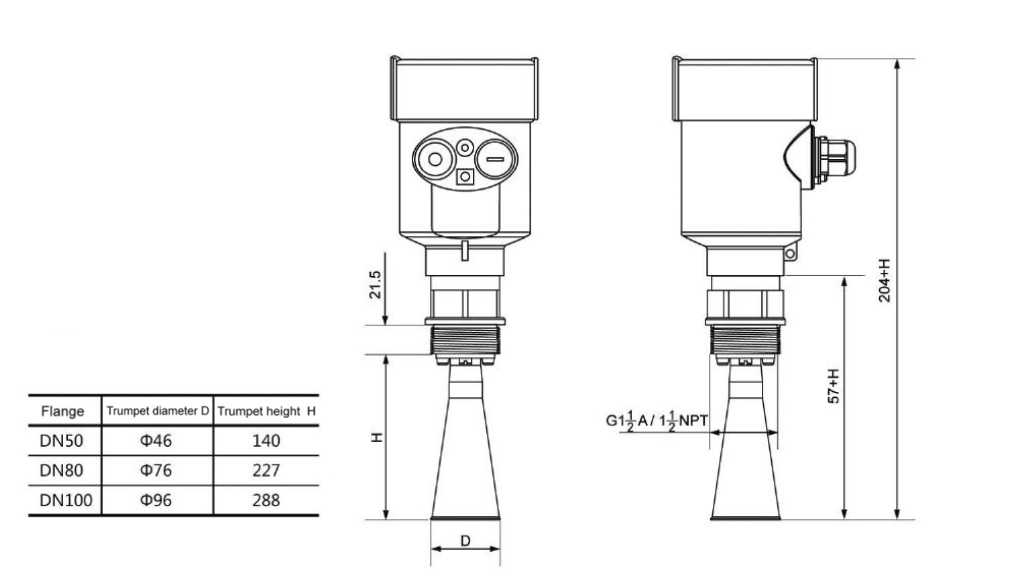

  • Product Size



  • Description
