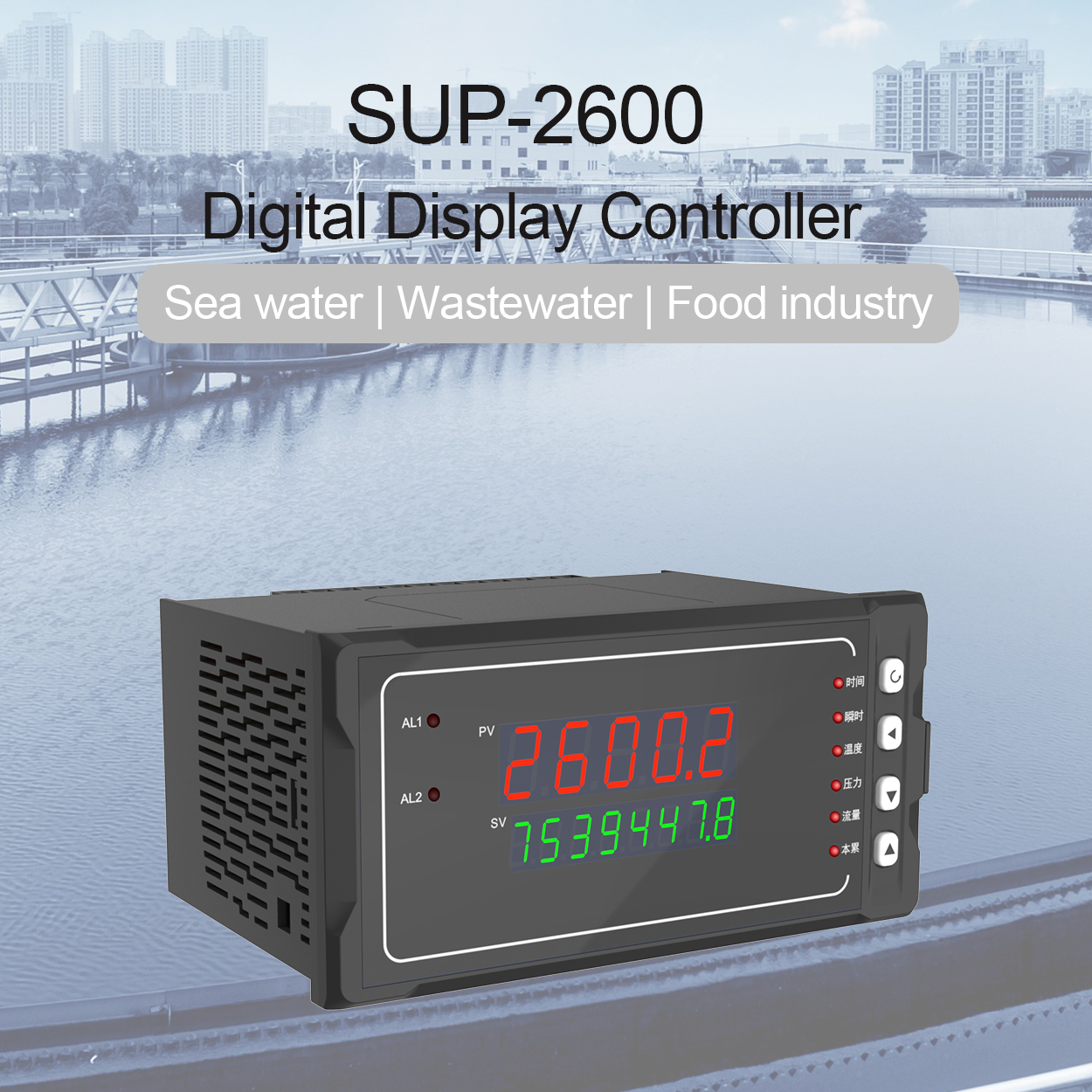

SUP-2600 LCD Flow (Heat) Totalizer / Recorder

SUP-2600 LCD Flow (Heat) Totalizer / Recorder

short description:

LCD flow totalizer is mainly designed for trading discipline between supplier and customer in regional central heating, and calculating steam, and high precision flow measurement. It’s a full-functional secondary instrument based on 32-bit ARM micro-processor, high-speed AD and large-capacity storage. The instrument has fully adopted surface-mount technology. Features Double four-digit LED display;5 types of dimensions available;Standard snap-in installation;Power supply: AC/DC100~240V (Frequency 50/60Hz)Power consumption≤5W DC 12~36V Power consumption≤3W


Product Detail

Product Tags

  • Specification
 Product LCD Flow (Heat) Totalizer / Recorder
 Model SUP-2600
 Dimension A. 160*80*110mm
B. 80*160*110mm
C. 96*96*110mm
D. 96*48*110mm
Measurement accuracy ±0.2%FS
Transmission output Analog output—-4-20mA、1-5v、
0-10mA、0-5V、0-20mA、0-10V
Alarm Output With upper and lower limit alarm function, with alarm return difference setting;Relay capacity:
AC125V/0.5A(small) DC24V/0.5A(small)(Resistive load)
AC220V/2A(big) DC24V/2A(big)(Resistive load)
Note: When the load exceeds the relay contact capacity, please do not directly carry the load
Power supply AC/DC100~240V (Frequency 50/60Hz)  Power consumption≤5W
DC 12~36V  Power consumption≤3W
Use environment Operating temperature(-10~50℃)No condensation, no icing
Printout RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions



  • Introduction

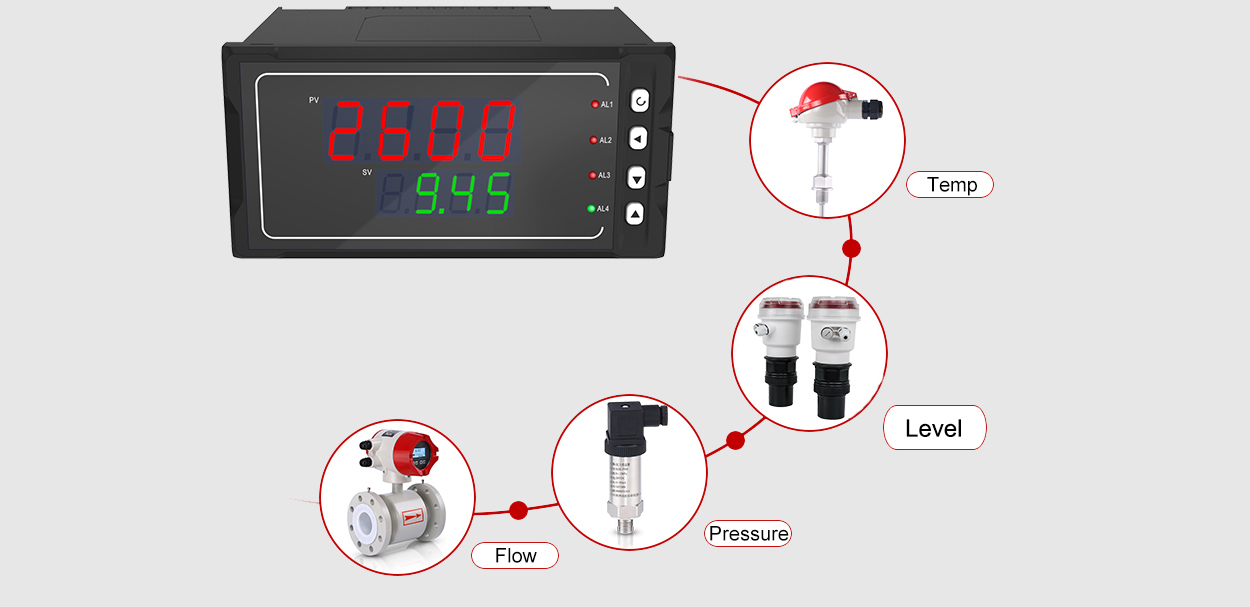

LCD flow totalizer is mainly designed for trading discipline between supplier and customer in regional central heating, and calculating steam, and high precision flow measurement. It’s a full-functional secondary instrument based on 32-bit ARM micro-processor, high-speed AD and large-capacity storage. The instrument has fully adopted surface-mount technology. It has good EMC ability and high reliability because of heavy protection and isolation in design. It is embedded RTOS, USB Host, and high-density FLASH memory, which can record 720-day length sampling data. It can automatically identify saturated steam and superheated steam. It can also be used for process monitoring and volume control of steam heat.

Input signal type :

Signal type Measurable range Signal type Measurable range
B 400~1800℃ BA2 -200.0~600.0℃
S -50~1600℃ 0-400Ω linear resistance -9999~99999
K -100~1300℃ 0~20mV -9999~99999
E -100~1000℃ 0-100 mV -9999~99999
T -100. 0~400.0℃ 0~20 mA -9999~99999
J -100~1200℃ 0~10 mA -9999~99999
R -50~1600℃ 4~20mA -9999~99999
N -100~1300℃ 0~5V -9999~99999
F2 700~2000℃ 1~5V -9999~99999
Wre3-25 0~2300℃ 0~10V customized -9999~99999
Wre5-26 0~2300℃ √0~10 mA 0~99999
Cu50 -50.0~150.0℃ √4~20 mA 0~99999
Cu53 -50.0~150.0℃ √0~5V 0~99999
Cu100 -50.0~150.0℃ √1~5V 0~99999
Pt100 -200.0~650.0℃ Frequency 0~10KHz
BA1 -200.0~650.0℃
