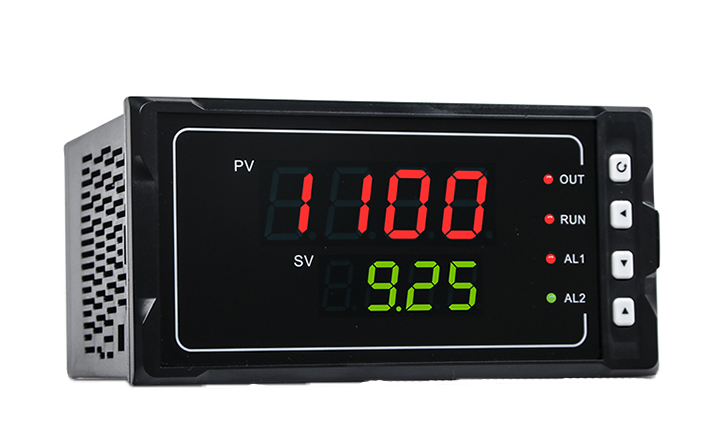

SUP-1100 LED Display multi panel meter

SUP-1100 LED Display multi panel meter

short description:

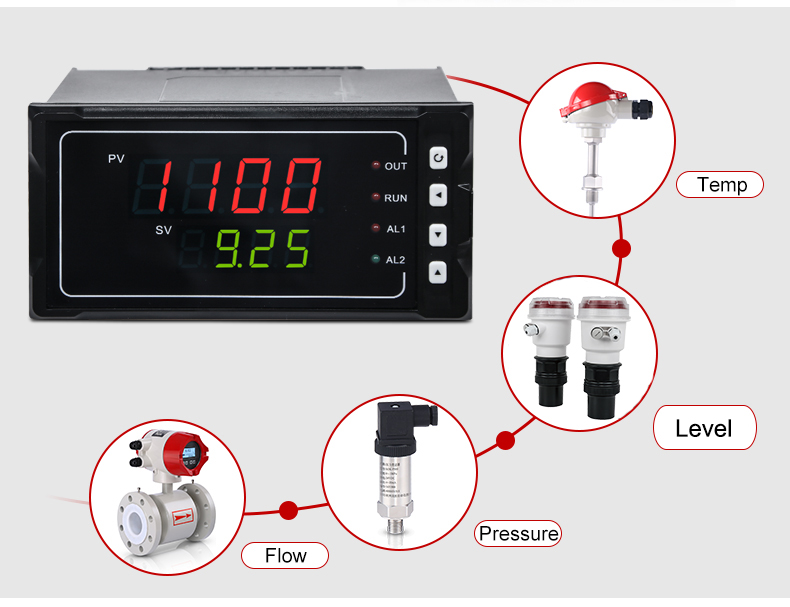

SUP-1100 is single-circuit digital panel meter with easy operation; double four-digit LED display, supporting input signals like thermocouple, thermal resistance, voltage, current , and transducer input; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc. Features Double four-digit LED display;7 types of dimensions available;Standard snap-in installation;Power supply: 100-240V AC or 20-29V DC;Standard MODBUS protocol;


Product Detail

Product Tags

  • Specification
 Product Digital meter/ digital display controller
 Model SUP-1100
 Display Dual-screen LED display
 Dimension A. 160*80*110mm
B. 80*160*110mm
C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
G. 48*48*110mm
  Input Thermocouple B, S, K, E, T, J, R, N, Wre3-25, Wre5-26;

RTD: Cu50, Cu53, Cu100, Pt100, BA1, BA2

Analog signal: -100~100mV, 4-20mA, 0-5V, 0-10V, 1-5V

  Output 4-20mA (RL≤600Ω)

RS485 Modbus-RTU

Relay output

 Power supply AC/DC100~240V (AC/50-60Hz)
DC 20~29V



  • Main features

* Single-circuit digital display controller provides easy operation with measurement precision of 0.3%;

* 7 types of dimensions available;

* Double four-digit LED display, used to measure and monitor various industrial processes including voltage, current, frequency, and pressure;

* Supporting 2-way alarm, 1way control output or RS485 communication interface adopting

* Standard MODBUS protocol, 1-way DC24V feed output; photoelectric isolation between input, output

* Standard snap-in installation;

* Power supply: 100-240V AC/DC or 20-29V DC universal;



  • Introduction





  • Input signal types
Degree no .Pn Signal types Measuring range Degree no Pn Signal types Measuring

range

0 Thermocouple  B 400~1800℃ 18 Remote Resistance 0~350Ω -1999~9999
1 Thermocouple  S 0~1600℃ 19 Remote Resistance    3 0~350Ω -1999~9999
2 Thermocouple  K 0~1300℃ 20 0~20mV -1999~9999
3 Thermocouple  E 0~1000℃ 21 0~40mV -1999~9999
4 Thermocouple  T -200.0~400.0℃ 22 0~100mV -1999~9999
5 Thermocouple  J 0~1200℃ 23 -20~20mV -1999~9999
6 Thermocouple  R 0~1600℃ 24 -100~100mV -1999~9999
7 Thermocouple  N 0~1300℃ 25 0~20mA -1999~9999
8 F2 700~2000℃ 26 0~10mA -1999~9999
9 Thermocouple  Wre3-25 0~2300℃ 27 4~20mA -1999~9999
10 Thermocouple  Wre5-26 0~2300℃ 28 0~5V -1999~9999
11 RTD  Cu50 -50.0~150.0℃ 29 1~5V -1999~9999
12 RTD  Cu53 -50.0~150.0℃ 30 -5~5V -1999~9999
13 RTD  Cu100 -50.0~150.0℃ 31 0~10V -1999~9999
14 RTD  Pt100 -200.0~650.0℃ 32 0~10mA square -1999~9999
15 RTD  BA1 -200.0~600.0℃ 33 4~20mA square -1999~9999
16 RTD  BA2 -200.0~600.0℃ 34 0~5V square -1999~9999
17 Linear resistance 0~500Ω -1999~9999 35 1~5V square -1999~9999
