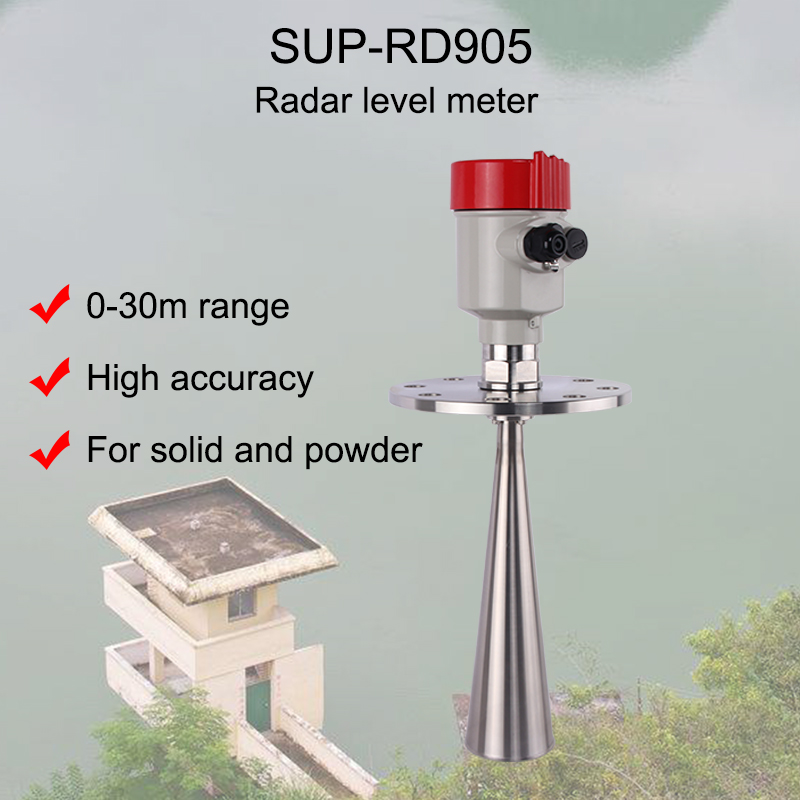

SUP-RD905 Solid material radar level meter

SUP-RD905 Solid material radar level meter

short description:

SUP-RD905 Radar level meter with high frequency, measurement of Solid particles, powder constant of the best choice. Features

  • Range:0~30 m
  • Accuracy: ±10mm
  • Application:Solid particles, powder
  • Frequency Range: 26GHz


Product Detail

Product Tags

  • Specification
 Product  Radar level meter
 Model SUP-RD905
 Measure range 0-30 meters
 Application Solid particles, powder
 Process Connection Thread, Flange
 Medium Temperature -40℃~250℃
 Process Pressure    -0.1~4.0 MPa (flat flange); -0.1 ~ 0.3 MPa (universal flange)
 Accuracy ±10mm
 Protection Grade IP67
 Frequency Range 26GHz
 Signal Output 4-20mA (Two-wire/Four)
RS485/Modbus
 Power supply 2-wire(DC24V)/ 4-wire(DC24V /AC220V)



  • Introduction

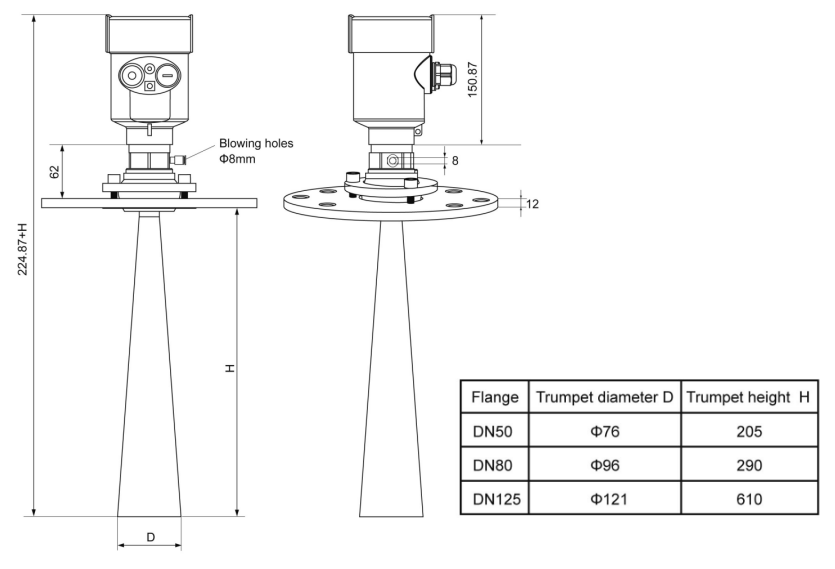

  • Product Size

  • Installation guide
Be installed in the diameter of the 1/4 or 1/6.

Note: The minimum distance from the tank

wall should be 200mm.

Note:  ① datum

②The container center or axis of symmetry

The top conical tank level, can be installed at

the top of the tank is intermediate, can guarantee

the measurement to the conical bottom

 A feed antenna to the vertical alignment surface.

 If the surface is rough, stack angle must be used

 to adjust the angle of cardan flange of the antenna

 to the alignment surface.

  (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.)
