SUP-1158-J Wall mounted ultrasonic flowmeter

SUP-1158-J Wall mounted ultrasonic flowmeter

short description:

SUP-1158-J ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance. Features

  • Pipe diameter:DN25-DN600
  • Accuracy: ±1%
  • Power supply: 10~36VDC/1A
  • Output: 4~20mA, RS485

Tel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com


Product Detail

Product Tags

  • Specification
 Product Ultrasonic flowmeter
 Model SUP-1158-J

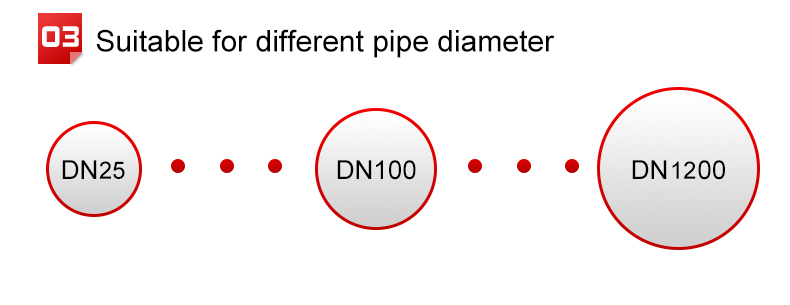

 Pipe size DN25-DN1200
 Accuracy ±1%
 Output 4~20mA, 750Ω
 Communication RS485, MODBUS
 Flow rate 0.01~5.0 m/s
 Working

temperature

Convertor: -10℃~50℃;

Flow Transducer: 0℃~80℃

 Working humidity Convertor:99%RH;
 Display 20×2 LCD English letters
 Power supply 10~36VDC/1A
 Case material PC/ABS
 Line 9m(30ft)
 Handset weight Transmitter: 0.7Kg; Sensor: 0.4Kg



  • Introduction

SUP-1158-J ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance and long lasting life.

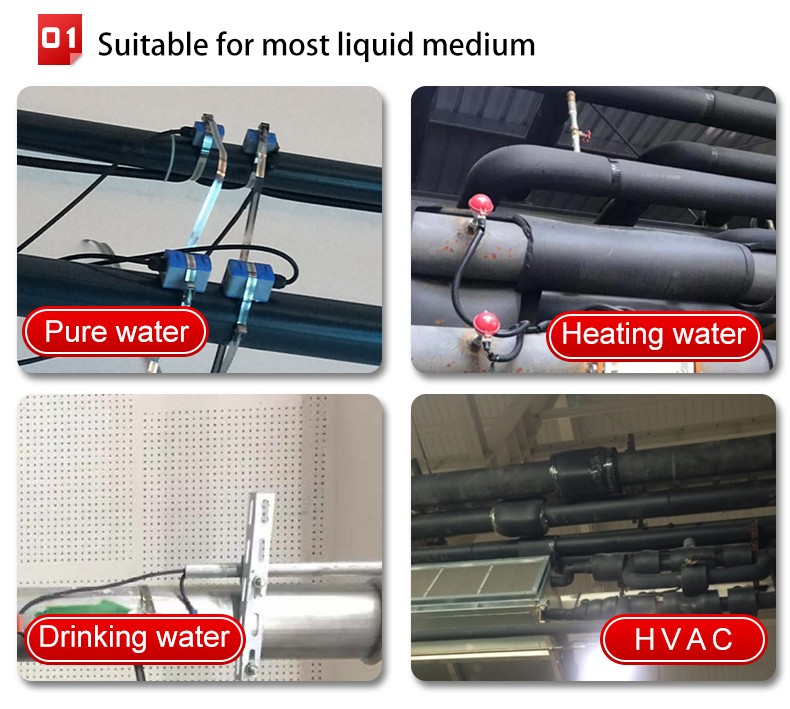

  • Application



  • Description

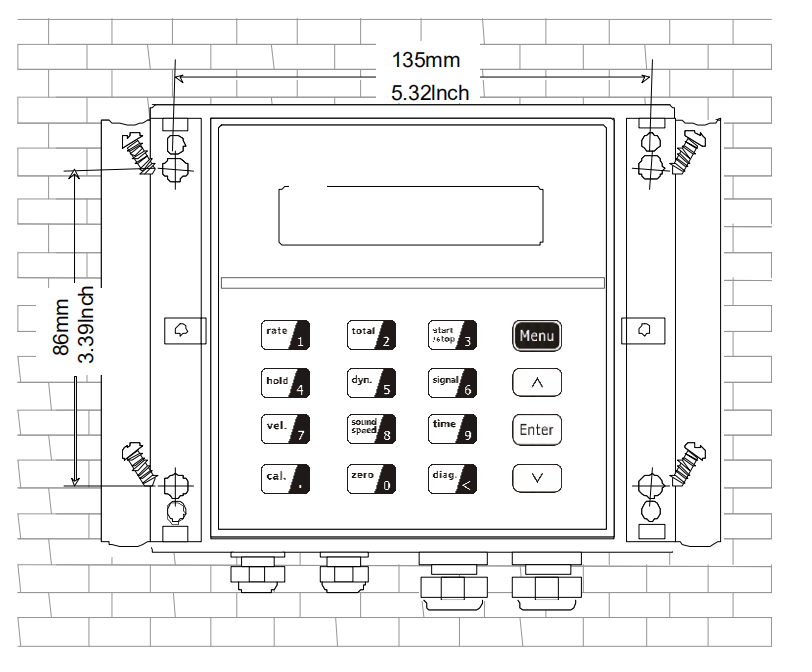

  • Installation method
