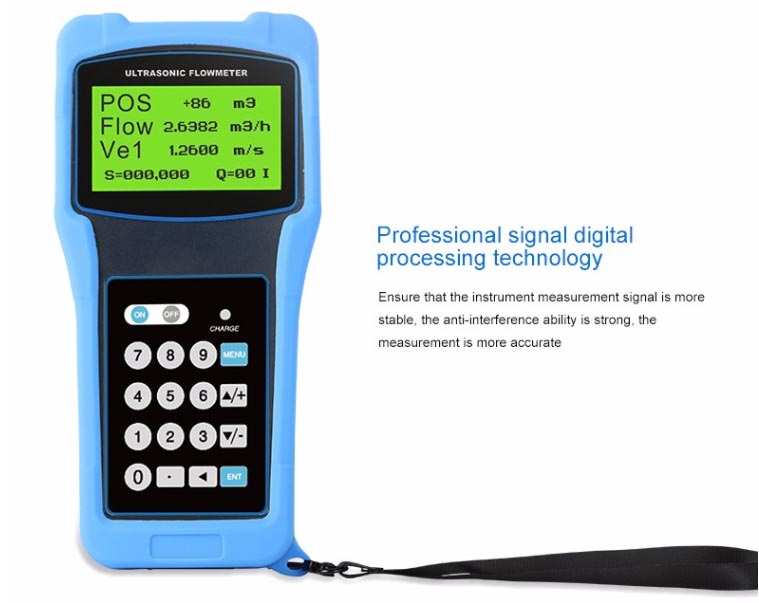

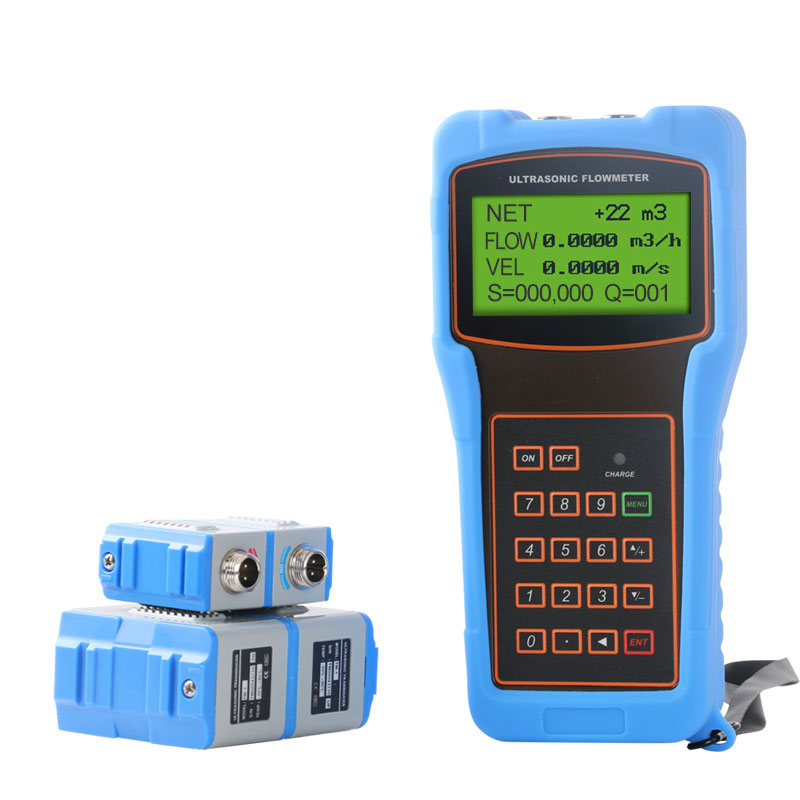

SUP-2000H Handheld ultrasonic flowmeter

SUP-2000H Handheld ultrasonic flowmeter

short description:

SUP-2000H ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance Features

  • Pipe diameter:DN32-DN6000
  • Accuracy:1.0%
  • Power supply: 3 AAA built-in Ni-H batteries
  • Case material: ABS

Tel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com


Product Detail

Product Tags

  • Specification
 Product Handheld ultrasonic flowmeter
 Model SUP-2000H
 Pipe size DN32-DN6000
 Accuracy ±1%
 Totalizer 7-digit totals for net
positive and negative flow respectively
 Liquid types Virtually all liquids
 Working

temperature

Convertor: -20~60℃;Flow Transducer:-30~160℃
 Working humidity Convertor: 85%RH; Flow transducer: IP67
 Display 4×8 Chinese characters or 4×16 English letters
 Power supply 3 AAA built-in Ni-H batteries
 Date logger Built-in data logger can store over 2000 lines of data
 Case material ABS
 Dimension 200*93*32mm(Convertor)
 Handset weight 500g with batteries



  • Introduction

SUP-2000H handheld ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance and long lasting life.
