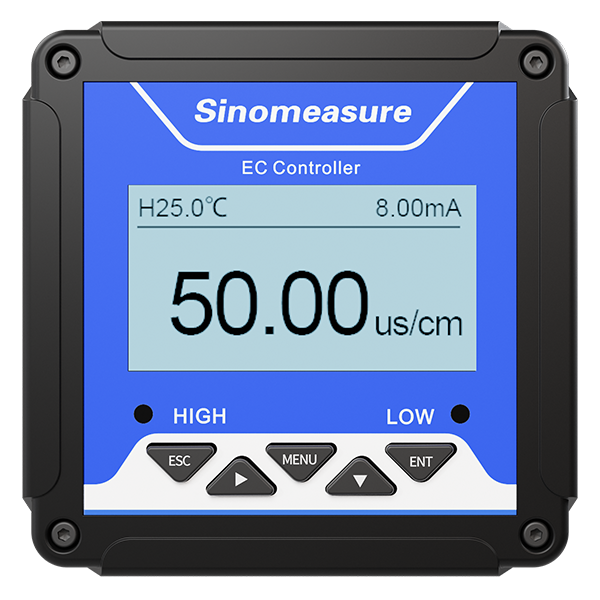

SUP-TDS210-C Conductivity Controller for EC, TDS, and ER Measurement
Introduction
The SUP-TDS210-C Conductivity Controller is an intelligent, ruggedized Industrial EC Controller and Online Chemical Analyzer engineered for continuous, high-accuracy liquid analysis. It provides reliable, multi-parameter measurement of Electrical Conductivity (EC), Total Dissolved Solids (TDS), Resistivity (ER), and solution temperature.
Unlike conventional process instrumentation, the SUP-TDS210-C is specifically designed and validated for deployment in process streams containing contaminants and other challenging media.
Precision and Integration Standards
The SUP-TDS210-C guarantees actionable control through standardized, reliable technology:
· Verified Accuracy: Provides consistent measurement with ±2%FS resolution.
· Control Outputs: Integrates seamlessly into industrial loops with AC250V, 3A Relay outputs for both high and low alarming or process actuation.
· Isolated Data: Features isolated 4-20mA analog output and RS485 (MODBUS-RTU) digital communication for minimal electrical interference.

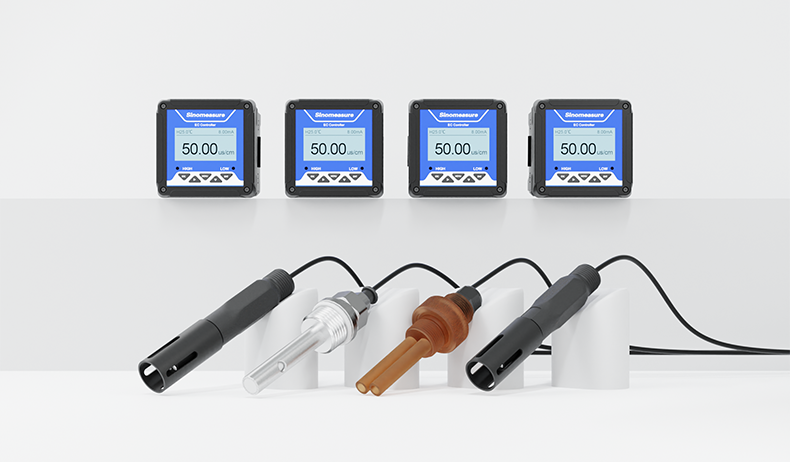

· Wide Range Capability: Supports multiple cell constants (from 0.01 to 10.0 electrodes) to cover ranges from pure water (0.02 µs/cm to highly conductive solutions (20 ms/cm).
· Power Standard: Operates on standard AC220V ±10% power supply (or optional DC24V).
Specification
| Product | TDS meter, EC controller |
| Model | SUP-TDS210-C |
| Measure range | 0.01 electrode: 0.02～20.00us/cm |
| 0.1 electrode: 0.2～200.0us/cm | |
| 1.0 electrode: 2～2000us/cm | |
| 10.0 electrode: 0.02～20ms/cm | |
| Accuracy | ±2%FS |
| Measuring medium | Liquid |
| Temp compensation | Manual/ Auto temperaturecompensation |
| Temperature Range | -10-130℃， NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | AC220V±10%, 50Hz/60Hz |
| Relay output | 250V, 3A |

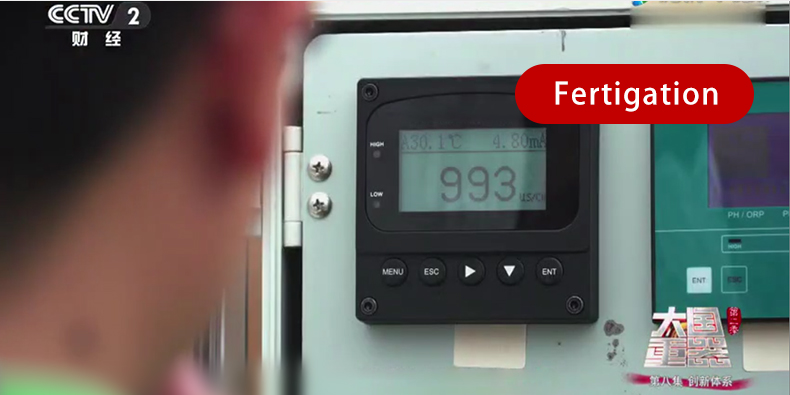

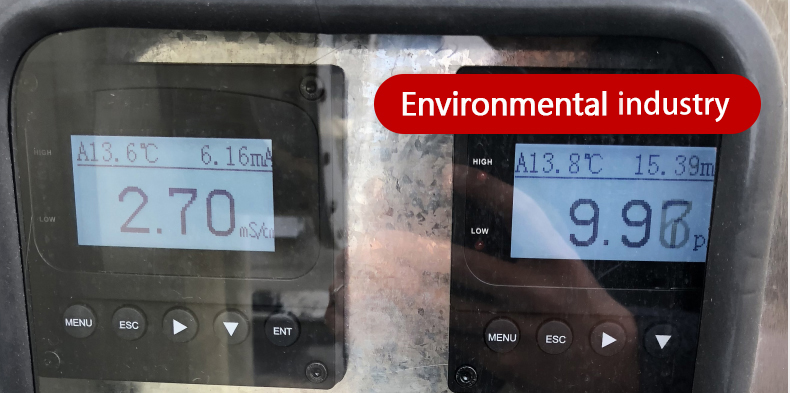

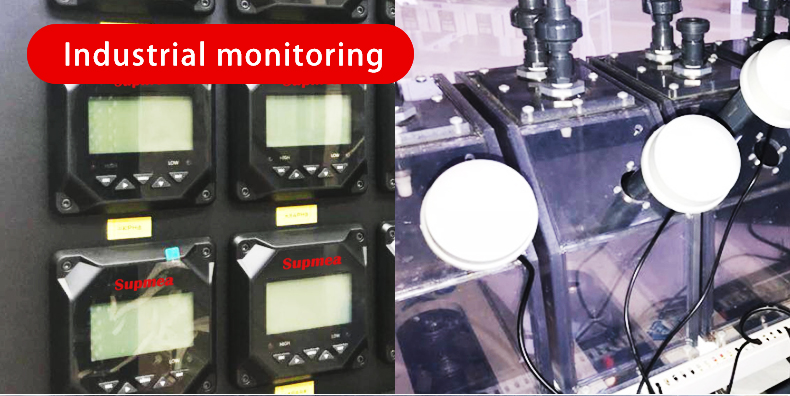

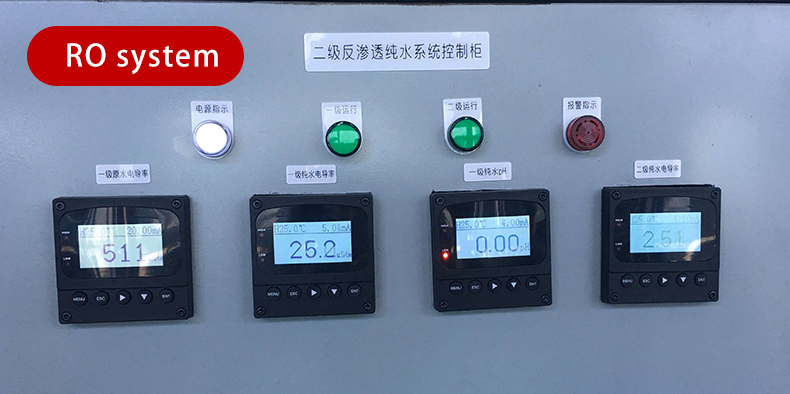

Application
The core value of the SUP-TDS210-C lies in its proven performance within demanding environments:
· Specialized Media Handling: Excels in measuring media prone to interference, including industrial wastewater, oil-containing suspensions, varnishes, and fluids with high concentrations of solid particles.
· Corrosion Resistance: Fully capable of handling fluids containing fluorides (hydrofluoric acid) up to 1000mg/l HF.
· Protection Systems: Supports two-chamber electrode systems to mitigate damage from electrode poisons.
· Target Industries: The preferred solution for electroplating plants, paper industry, and chemical process measurements where accuracy cannot be compromised.
