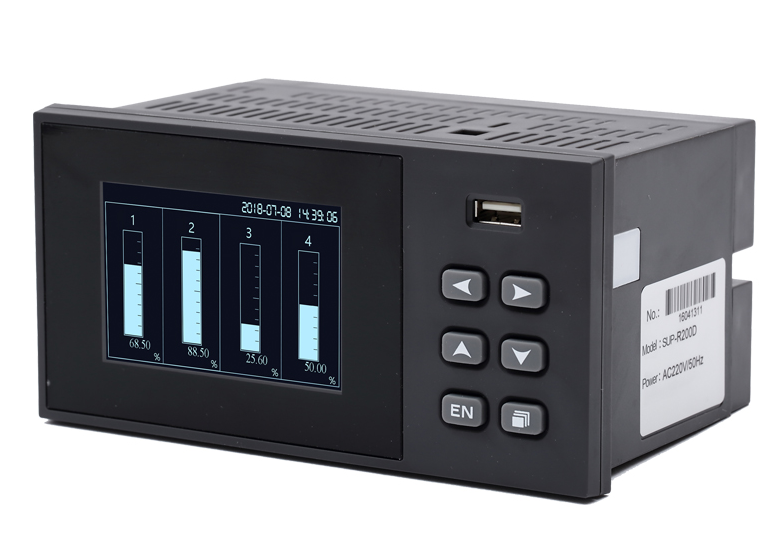

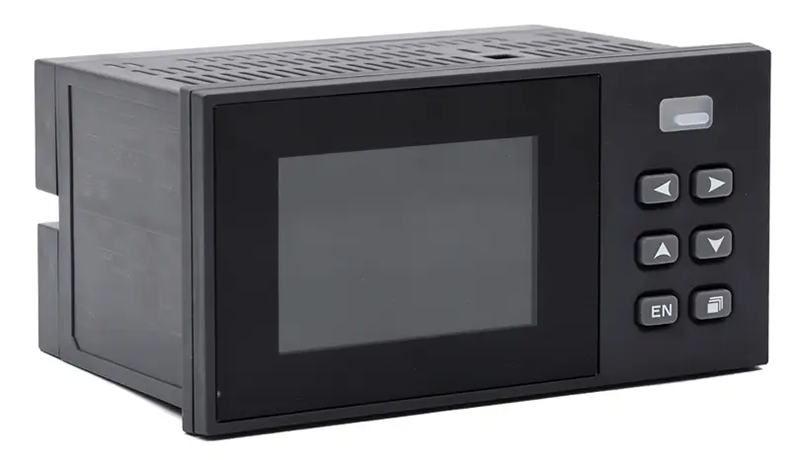

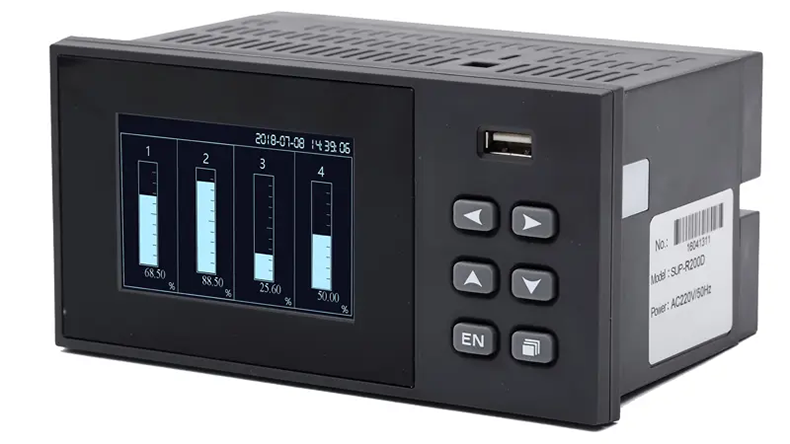

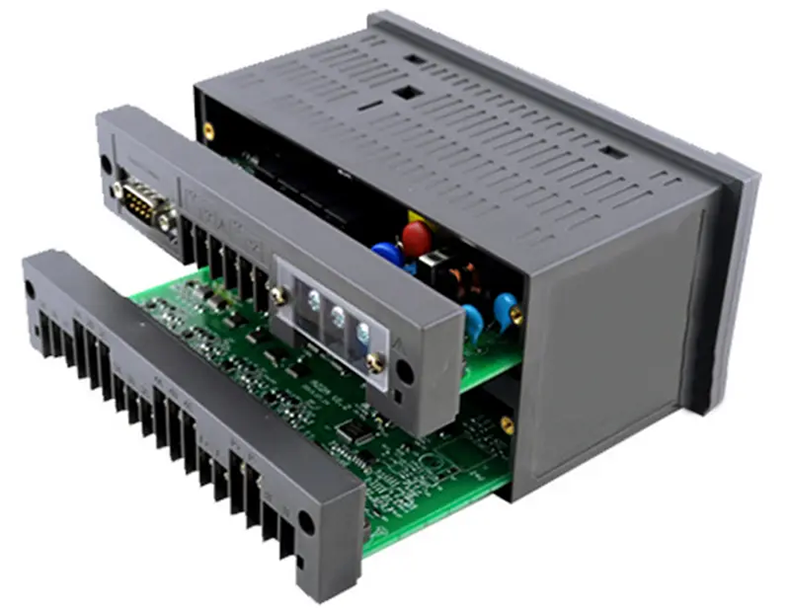

R200D Paperless Recorder: Compact Industrial Data Recorder with Up to 4 Universal Input Channels
Introduction
The R200D paperless recorder functions as a centralized monitoring tool for multiple process variables. It collects signals from field instruments, converts them into digital values, and displays them on the integrated LCD screen for real-time observation. At the same time, the system stores measurement data in internal flash memory, enabling historical data review and process analysis.
The recorder supports different signal types, including current, voltage, thermocouple, and RTD inputs, allowing various sensors to be connected simultaneously. This universal input design simplifies system configuration and eliminates the need for additional signal converters.
With a sampling interval of up to 1 second, the device can capture and process changes quickly and accurately. Its built-in storage system allows continuous data recording for extended periods, ensuring that important operational information is preserved for future analysis.
In addition to local monitoring, the recorder supports RS232 or RS485 communication using the Modbus protocol, allowing it to be integrated into supervisory control systems for centralized data management.
Working principle
The R200D paperless recorder continuously collects signals from connected sensors and transmitters within an industrial process.
First, analog signals from field instruments, such as 4–20 mA current signals, voltage signals, thermocouple outputs, or RTD resistance signals, are received by the recorder through its universal input channels. These signals represent actual process conditions like temperature, pressure, or flow.
The recorder then processes these signals using internal signal conditioning circuits and analog-to-digital conversion. The converted digital values correspond to real engineering parameters and are displayed on the LCD screen in numerical or graphical formats.
At the same time, the device stores the measurement data in its internal memory at user-defined intervals. Operators can review historical records directly on the instrument or export the data through the USB interface for further analysis.
If process values exceed configured thresholds, the recorder can trigger relay outputs to activate alarms or other control responses. This enables operators to react quickly to abnormal process conditions and maintain safe operation.
Key features
The R200D paperless recorder combines compact design with practical data acquisition capabilities to support reliable process monitoring.
- Up to 4 Universal Input Channels: Supports multiple signal types, including current, voltage, thermocouple, and RTD inputs, allowing simultaneous monitoring of several process variables.
- High Measurement Accuracy: Provides measurement accuracy of approximately ±0.2% of full scale, ensuring reliable data for process analysis and operational control.

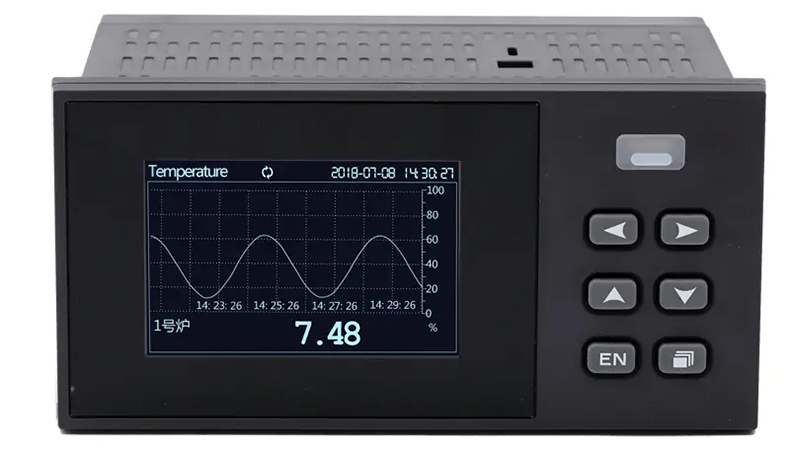

- Compact LCD Display: Equipped with a 3-inch LCD screen that presents real-time values, graphical trends, and system information for quick monitoring.
- Reliable Digital Data Storage: Recorded data is stored in internal flash memory, preventing data loss during power interruptions and enabling long-term storage.
- Alarm Output and Communication Interface: Supports relay alarm outputs and RS232/RS485 communication with Modbus protocol for integration with PLC or SCADA systems.
- Flexible Data Recording Interval: Recording intervals can be configured from seconds to minutes, allowing the recorder to adapt to different process monitoring requirements.
Specification
| Product | Paperless recorder |
| Model | R200D |
| Inputs channel | 1~4channels |
| Input | 0-10 mA, 4-20 Ma,0-5 V, 1-5 V, 0-20 mV, 0-100 mV, |
| Thermocouple: B, E, J, K, S, T, R, N, F1, F2, WRE | |
| RTD:Pt100, Cu50, BA1, BA2 | |
| Accuracy | 0.2%FS |
| Input impedance | Standard current signal input 250 ohm, other signal input>20M ohm |
| Power supply | AC voltage 176-240VAC |
| Alarm output | 250VAC,3A relay |
| Communication | Interface:RS-485 or RS-232 |
| Sampling period | 1s |
| Record | 1s/2s/5s/10s/15s/30s/1m/2m/4m |
| Display | 3-inch LCD screen |
| Size | boundary dimension 160mm*80mm |
| perfprate dimension 156mm*76mm | |
| Powe fail safeguard | Data is saved in the Flash storage need a backup battery. Every piece of data will not be missed in case of poweroff. |
| RTC | Using a hardware real-time clock with a Lithium battery, when the power is off, the maximum error 1min/month |
| Watchdog | Integrated Watchdog chip to ensure the system is stable |
| Isolation | Channel and GND isolation voltage>500VAC; |
| Channel and channer isolation voltage>250VAC |
Applications
The R200D paperless recorder is widely used in industrial environments that require reliable multi-parameter monitoring and historical data recording.
Water and wastewater treatment
Monitoring flow, pressure, temperature, and other process variables to ensure stable water and wastewater treatment system operation.
Chemical and process industries
Recording key production parameters for process optimization and safety monitoring.
Energy and heat treatment systems
Tracking temperature and equipment performance to maintain stable thermal processes.
Manufacturing and automation systems
Providing centralized data recording for production equipment and process control systems.
Food and pharmaceutical production
Recording process conditions to support food and pharmaceutical quality control and traceability.
These applications benefit from improved process visibility, centralized data management, and reduced manual recording tasks.
