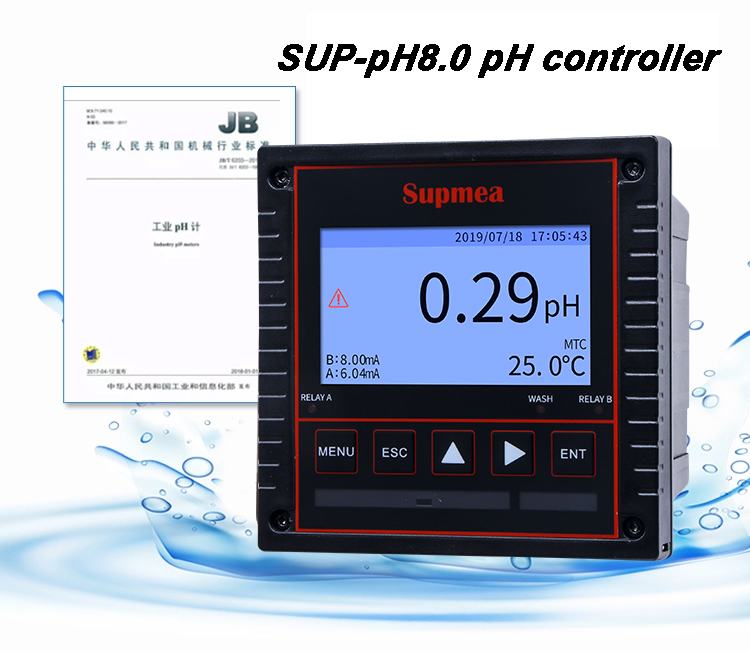

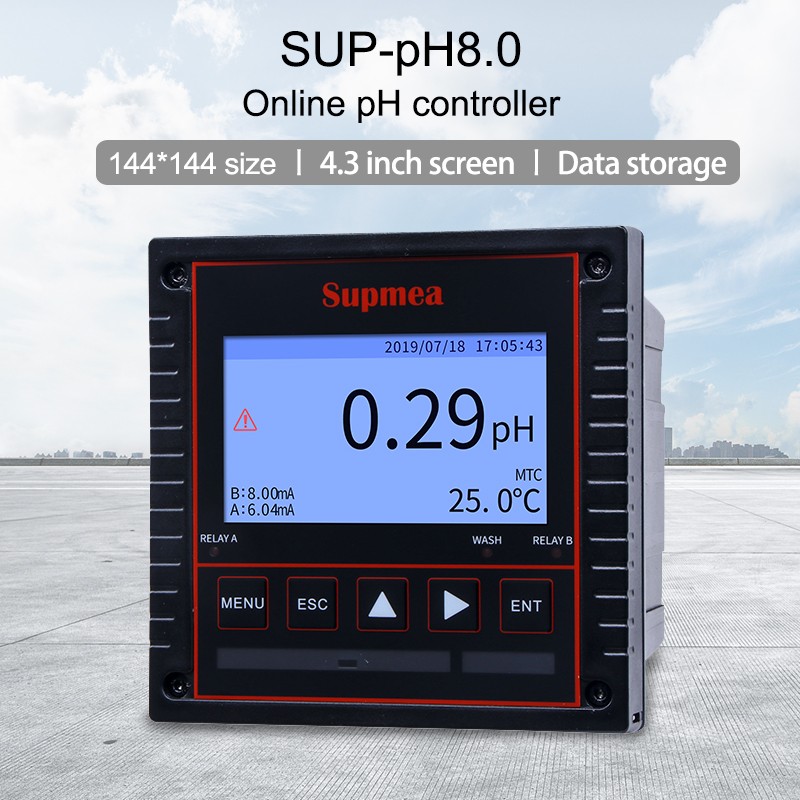

PH8.0 pH Controller, ORP Controller for Industrial, Laboratory pH Value Control/Monitoring

Introduction

This advanced pH controller integrates a 4.3-inch display with bilingual (Chinese/English) interface, supporting manual or automatic temperature compensation via NTC10K, PT1000, or PT100 probes. It features high input resistance (≥10^12 Ω) and operates effectively in temperatures from 0 to 60°C, with storage capabilities from -20 to 70°C at 10-85% relative humidity (non-condensing).

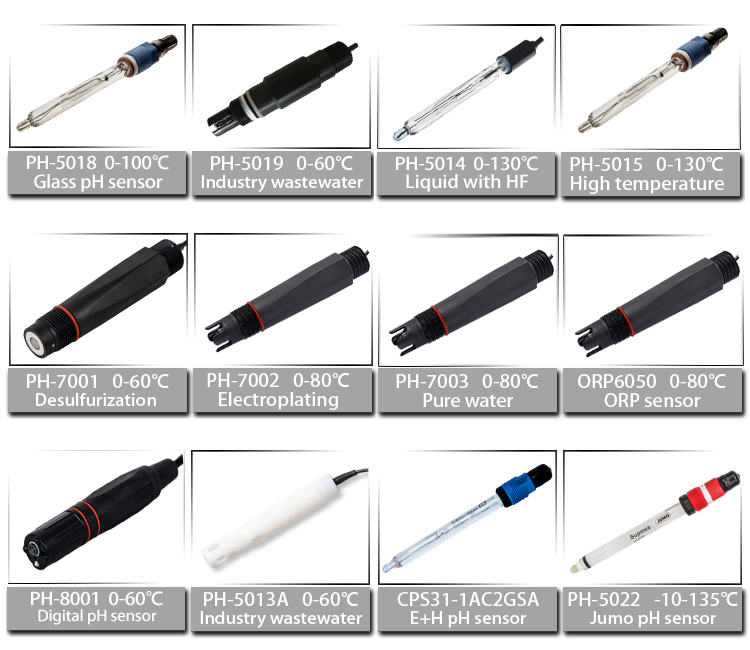

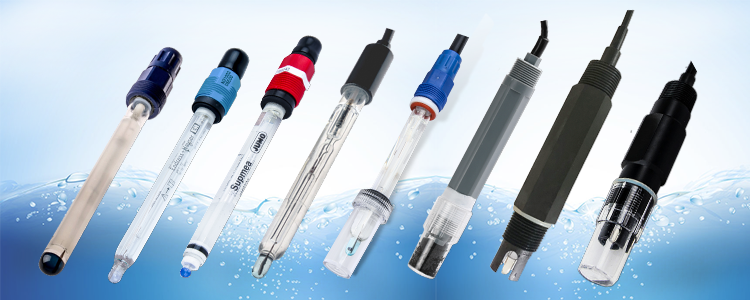

The device includes data recording for up to 100 sets using the FIFO method, configurable intervals, and automatic cleaning functions with adjustable timing. Compatible with various electrodes, like glass electrodes for pH, platinum for ORP, or antimony alternatives alongside NTC10K, PT1000, or PT100 temperature sensors, it provides LED indicators for relays and cleaning, along with navigation keys for easy setup.

Operating principle

Step 1: The pH8.0 lineup pH controller/ORP Controller operates by interfacing with pH, ORP, or antimony electrodes to detect solution potential differences, converting these into readable pH or ORP values.

Step 2: Temperature sensors provide real-time data for compensation, adjusting measurements to account for thermal effects on ion activity.

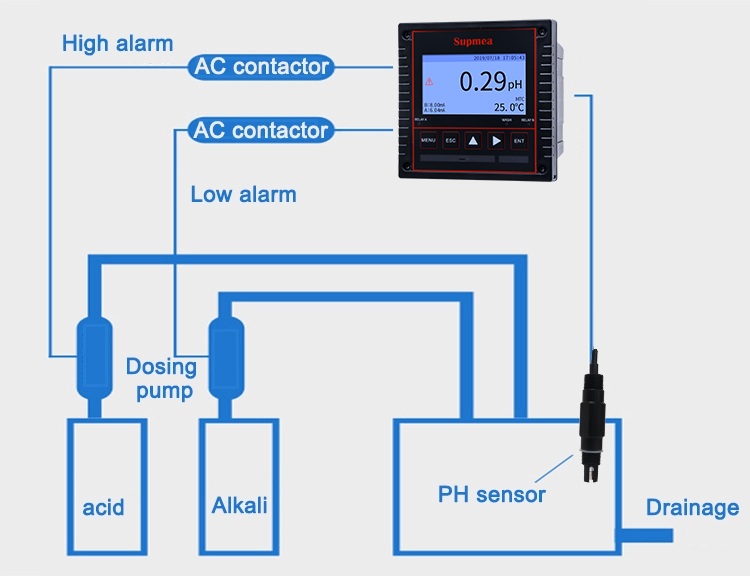

Step 3: Signals are processed through an internal circuit, enabling output via analog currents, digital communication, or relays for process automation and alarms.

Key features

Unlock the core strengths of the pH8.0 pH/ORP controller, designed to empower professionals with cutting-edge tools for precise and efficient pH/ORP management in industrial operations. This ORP/pH control monitoring device combines robust functionality with intuitive controls, ensuring seamless adaptation to specific monitoring requirements:

• Multi-Point Calibration and Signal Stabilization: Flexible 1-3 point setup using buffers like 4.00, 6.86, or 9.18 pH for tailored accuracy, plus adjustable filter levels from 0-9 to minimize noise and ensure steady readings in variable conditions.
• Alarm Customization: Relay modes for high/low thresholds with adjustable set points and hysteresis to prevent false triggers.
• Communication Flexibility: RS-485 with baud rates from 2400 to 19200, including parity and stop bit configurations for seamless networking.
• Output Versatility and Remote Integration: Selectable 0-20 mA or 4-20 mA channels linked to pH/ORP or temperature for diverse control needs, alongside dedicated Modbus registers enabling access to live data and parameter adjustments from external systems.
• Display Optimization: Backlight intensity tunable from 1-25 for enhanced visibility in any lighting environment.
• Security, Recovery, and Diagnostic Tools: Password-locked settings and one-touch factory reset to safeguard configurations, plus built-in troubleshooting for common issues such as sensor faults or delayed responses.

Specification

Applications

Deploy the pH control measuring tool wherever continuous pH/ORP monitoring enhances operational reliability and regulatory adherence in fluid-based processes:

• Thermal power generation: Oversees boiler feed water and cooling systems to optimize efficiency and prevent scaling.
• Chemical engineering and fertilizer production: Controls reaction mixtures and nutrient solutions for consistent yields.
• Metallurgy and environmental protection — Monitors metal extraction baths and wastewater streams to mitigate pollution.
• Pharmaceutical and biochemical processes: Ensures sterile conditions and precise acidity in drug formulation and culturing.
• Food industry and tap water monitoring: Regulates preservation agents and potable supplies for safety and quality.
• Agriculture and general water treatment: Manages irrigation pH and purification cycles to support crop health and resource sustainability.
