SUP-TDS6012 Conductivity Sensor for High Accuracy Liquid Treatment
Introduction
SUP-TDS6012 Conductivity Sensors are robust, cost-effective industrial instruments designed for high-accuracy continuous liquid measurement. This reliable electrical conductivity sensor provides dual functionality, offering both Electrical Conductivity (EC) and Total Dissolved Solids (TDS) measurement capabilities within a single unit, ensuring efficient water quality monitoring.
Built with a durable stainless steel body, the SUP-TDS6012 water conductivity sensor is engineered for seamless integration into crucial industrial applications demanding stable and precise liquid analysis.
Key Features
The SUP-TDS6012 electrical conductivity sensor is optimized for performance and longevity, delivering technical advantages and functions:
·Dual-Parameter Measurement: Provides EC and TDS values simultaneously, streamlining monitoring efforts.
·High Precision: Offers a certified measurement accuracy of ±1%FS (Full Scale).

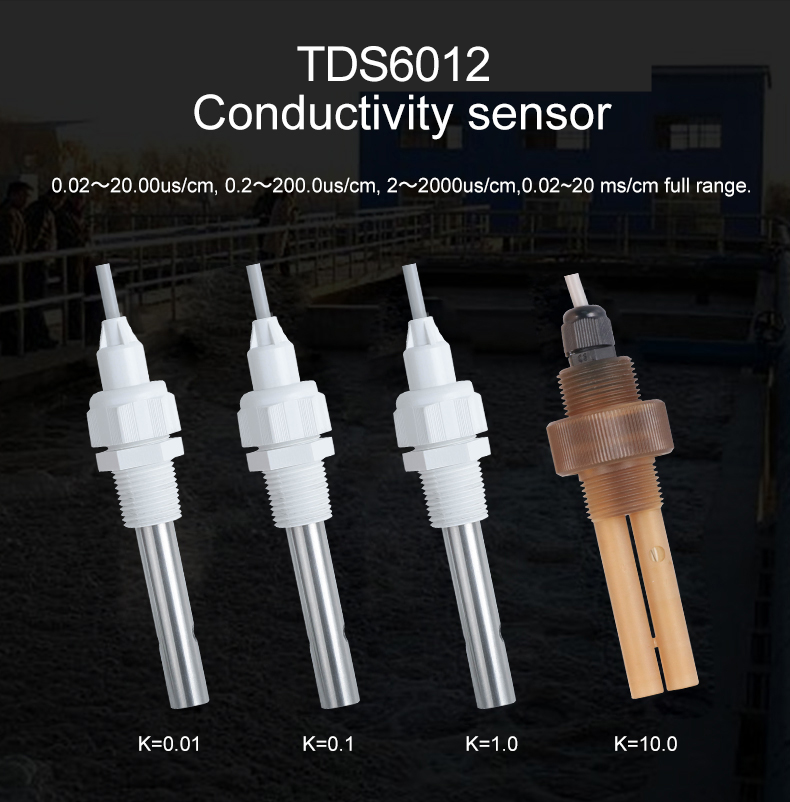

·Wide Range Capability: Supports multiple cell constants (K values), enabling precise measurement from ultra-pure water to high-concentration solutions. Available ranges extend from 0.01 ~ 20µs/cm up to 1 ~ 2000µs/cm.
·Robust Construction: Constructed from Stainless Steel and features an Ingress Protection rating of IP65, ensuring durability and resistance to harsh industrial environments.
·Integrated Temperature Control: Supports either NTC10K or PT1000 temperature compensation elements, essential for correcting conductivity values across the operating temperature range of 0-60°C.
·Easy Installation: Designed for direct in-line installation with common standard NPT 1/2 or NPT 3/4 thread connections, rated for operational pressures up to 4 bar.
Working Principle (Conductive Measurement)
The SUP-TDS6012 water conductivity sensor operates on the principle of ionic conductance. The sensor acts as a precision transducer, converting the fluid’s ability to carry charge into a measurable electrical signal.
An AC potential is continuously applied across the two electrodes, generating an ionic current proportional to the concentration of dissolved salts and minerals.
By using an alternating current, the sensor completely suppresses the polarization effects and corrosion that plague DC measurement. The internal cell constant (K), a precise ratio of the electrode geometry, is used by the analyzer to standardize this ionic current into the final conductivity (Siemens/cm) or TDS value.
Finally, the integrated temperature element corrects this reading for thermal variations, ensuring stability and accuracy.
Specification
| Product | TDS sensor, EC sensor, Resistivity sensor |
| Model | SUP-TDS6012 |
| Measure range | 0.01 electrode: 0.01~20us/cm |
| 0.1 electrode: 0.1~200us/cm | |
| 1.0 electrode: 1~2000us/cm | |
| Accuracy | ±1%FS |
| Thread | NPT 1/2 、 NPT 3/4 |
| Pressure | 4 bar |
| Material | Stainless steel |
| Temp compensation | NTC10K / PT1000 optional |
| Temperature range | 0-60℃ |
| Temperature accuracy | ±3℃ |
| Ingress protection | IP65 |
Applications

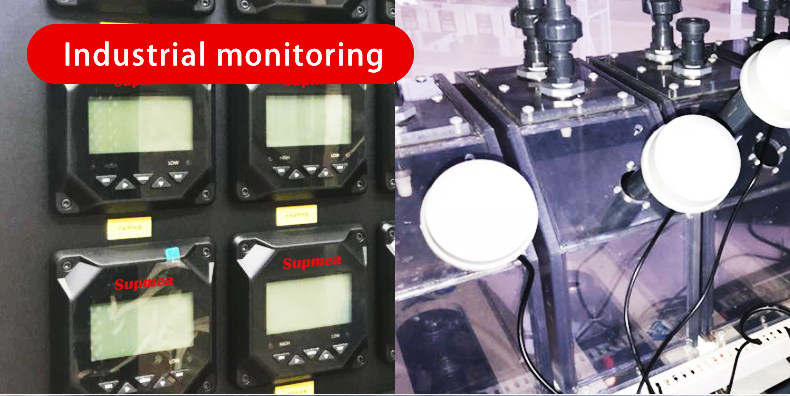

The SUP-TDS6012 is a versatile sensor essential for critical control points across several high-traffic industry sectors:

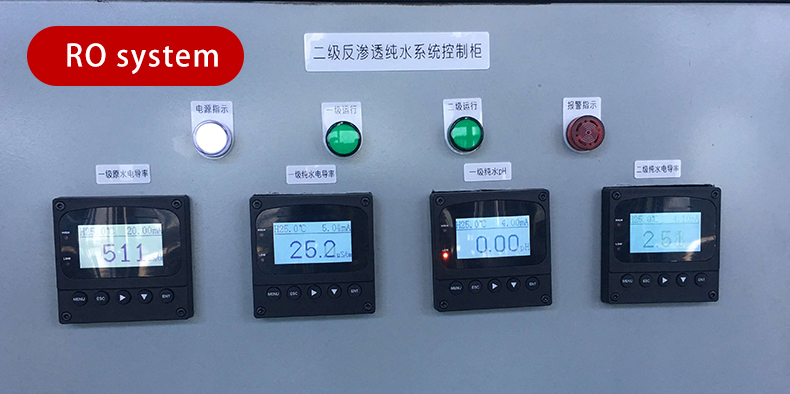

·Pure Water Treatment: Ideal for monitoring RO (Reverse Osmosis) systems and ultra-pure water applications to ensure final product quality.
·Energy & Power: Used in boiler water monitoring to prevent scale buildup and corrosion, protecting expensive plant assets.

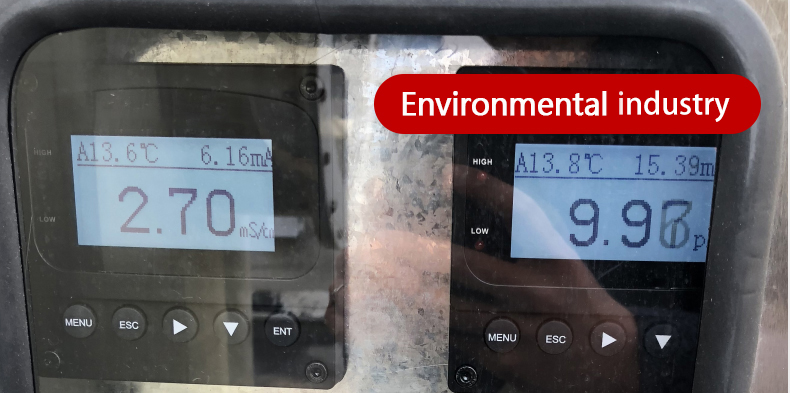

·Environmental & Wastewater: Deployed in sewage treatment and general environmental monitoring for compliance and process regulation.
·Life Sciences: Essential for liquid measurement and monitoring within the pharmaceutical industry.

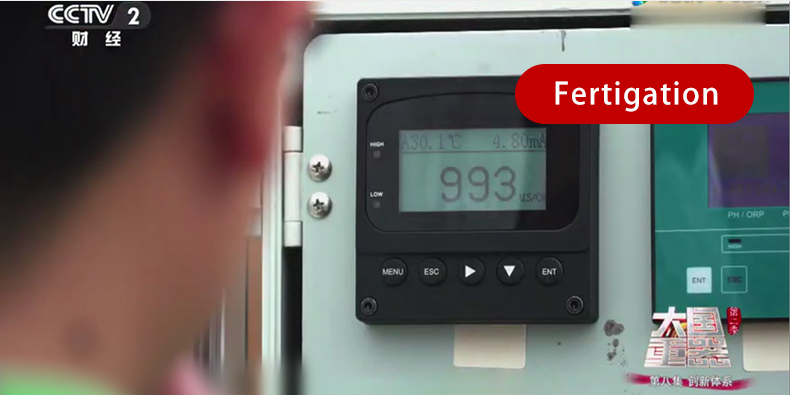

·Agriculture: Utilized in fertigation systems for precise control of nutrient and mineral levels in irrigation water.
