R9600 Paperless Recorder: Multi-Channel Industrial Data Recorder with Up to 18 Universal Inputs

Introduction

The R9600 paperless recorder is a compact industrial data acquisition instrument designed for multi-parameter monitoring. It receives signals from field sensors and transmitters, converts them into digital data, and displays them through a clear graphical interface. At the same time, the recorder stores historical data internally, allowing operators to review process trends and operational history when needed.

This paperless recorder supports various signal types through universal inputs, including current, voltage, thermocouples, and RTD temperature sensors. The flexible input configuration allows different signal types to be used simultaneously within the same device, reducing the need for additional converters or monitoring equipment.

The unit includes several built-in functions, such as alarm outputs, data export via a USB interface, and RS-485 communication using the Modbus RTU protocol. These capabilities allow the recorder to function as both a local monitoring device and part of a larger industrial control system.

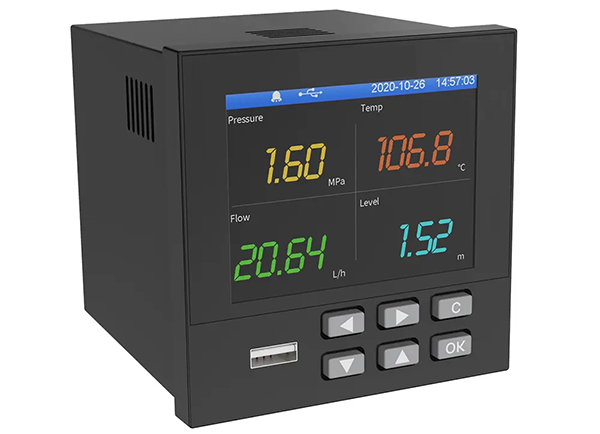

With a 3.5-inch TFT color display, operators can view real-time measurements, historical data, and alarm information directly from the front panel. The system stores recorded data in internal flash memory and protects it even during power interruptions.

Working principle

The R9600 paperless recorder operates by continuously collecting signals from connected sensors and instruments throughout an industrial process.

First, the device receives analog input signals from field transmitters such as temperature sensors, pressure transmitters, flow meters, or level instruments. These signals can include current signals (such as 4–20 mA), voltage signals, thermocouple signals, or resistance signals from RTD sensors.

Once the signals are received, the recorder processes them through its internal signal conditioning circuits and analog-to-digital conversion system. This process transforms the electrical signals into digital values that correspond to actual process parameters.

The recorder then performs three main functions simultaneously:

• Real-time monitoring: Process values are displayed on the screen using numerical values, trend curves, or graphical displays.

• Data recording: Measurements are continuously stored in the internal flash memory for later review.

• Alarm and communication: When measured values exceed preset limits, relay outputs can trigger alarms or control responses, while communication interfaces allow the data to be transmitted to supervisory systems.

This digital recording approach improves reliability compared with traditional paper chart systems while enabling easier access to historical process data.

Key features

The R9600 paperless recorder integrates practical data acquisition capabilities with reliable digital recording technology. Its design focuses on flexible signal compatibility, stable data storage, and easy integration into industrial monitoring systems, making it suitable for a wide range of process control environments.

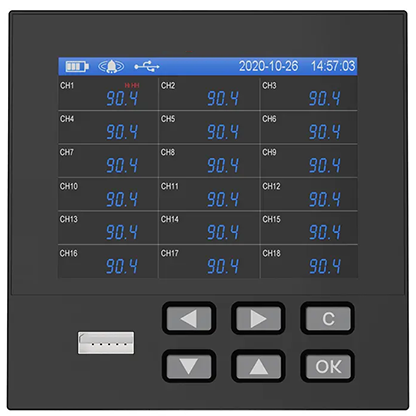

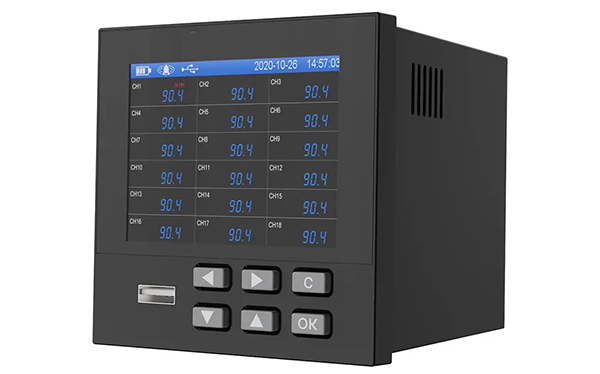

• Up to 18 Universal Input Channels: The recorder supports up to 18 analog input channels, allowing simultaneous monitoring of multiple process variables within one device.
• Flexible Signal Compatibility: Universal inputs accept various industrial signal types, including voltage, current, thermocouple, and RTD signals, providing compatibility with many common field instruments.
• Compact Color Display Interface: A 3.5-inch TFT color LCD provides clear visualization of process data and supports multiple display formats for easier monitoring and analysis.
• Reliable Digital Data Storage: Recorded data is stored in internal flash memory and can be exported using a USB interface, allowing convenient access to historical process information.
• Alarm and Communication Functions: The recorder supports relay alarm outputs and RS485 communication using the Modbus RTU protocol, enabling integration with PLC, SCADA, or distributed monitoring systems.
• Power Failure Data Protection: All configuration parameters and historical data are stored in non-volatile memory, ensuring that information remains intact even in the event of power loss.
• Compact Panel-Mounted Design: With a standard panel mounting size and compact dimensions, the device can be easily installed in industrial control cabinets or monitoring panels.

Specification

Applications

The R9600 paperless recorder is widely used in industrial environments where multi-parameter monitoring and reliable data recording are required.

Water and wastewater treatment

Monitoring process variables such as flow, level, pH, and temperature to maintain stable water and wastewater treatment performance.

Industrial process monitoring

Recording pressure, temperature, and electrical signals in manufacturing lines and equipment systems.

Energy and power systems

Collecting operational data from boilers, heat exchangers, and other thermal systems for performance evaluation.

Chemical and process industries

Tracking critical process parameters to support production stability and safety monitoring.

Environmental and laboratory monitoring

Recording temperature, humidity, and process data in testing systems and research facilities.

These applications benefit from centralized data logging, historical analysis, and improved operational transparency.
