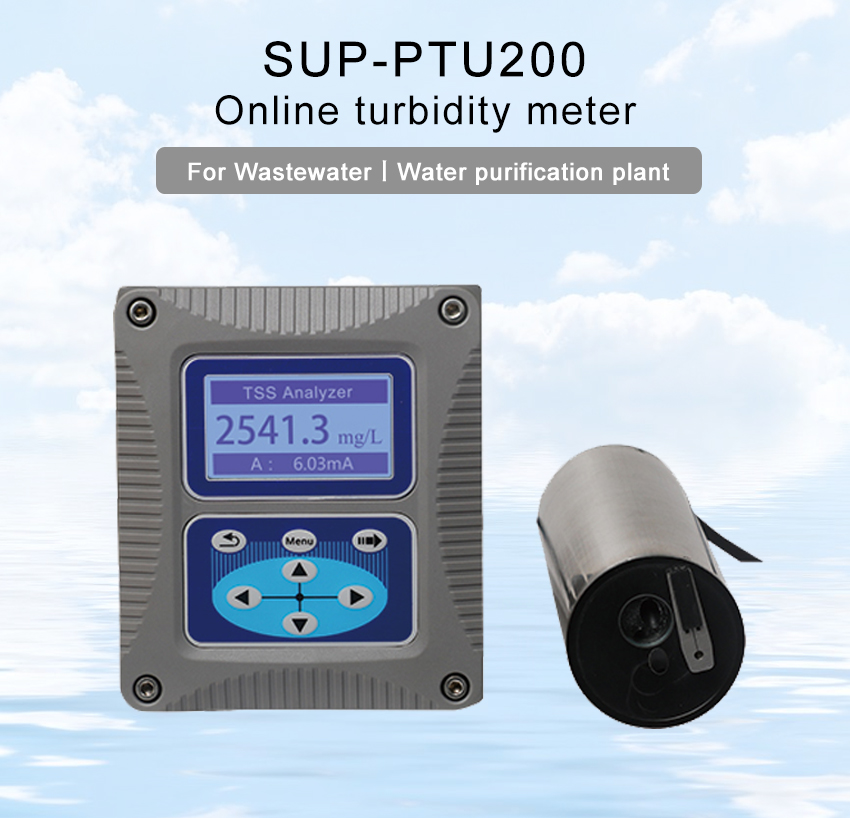

PTU200 Turbidity Meter for Drinking Water/Portable Water Turbidity Measurements

Introduction

The PTU200 Turbidity Meter utilizes an optical scattered light detection method to quantify turbidity by measuring the intensity of light scattered by suspended particles in water. This approach provides stable and repeatable readings across a broad range of water conditions. Built with industrial operation in mind, the PTU200 supports continuous online measurement, minimizing the need for manual sampling and laboratory testing.

Equipped with configurable outputs and a clear display interface, this meter can integrate with automation systems such as PLCs, SCADA, and distributed control frameworks. The result is a versatile solution that supports precise turbidity tracking and process transparency, enabling faster detection of anomalies and more responsive operational control.

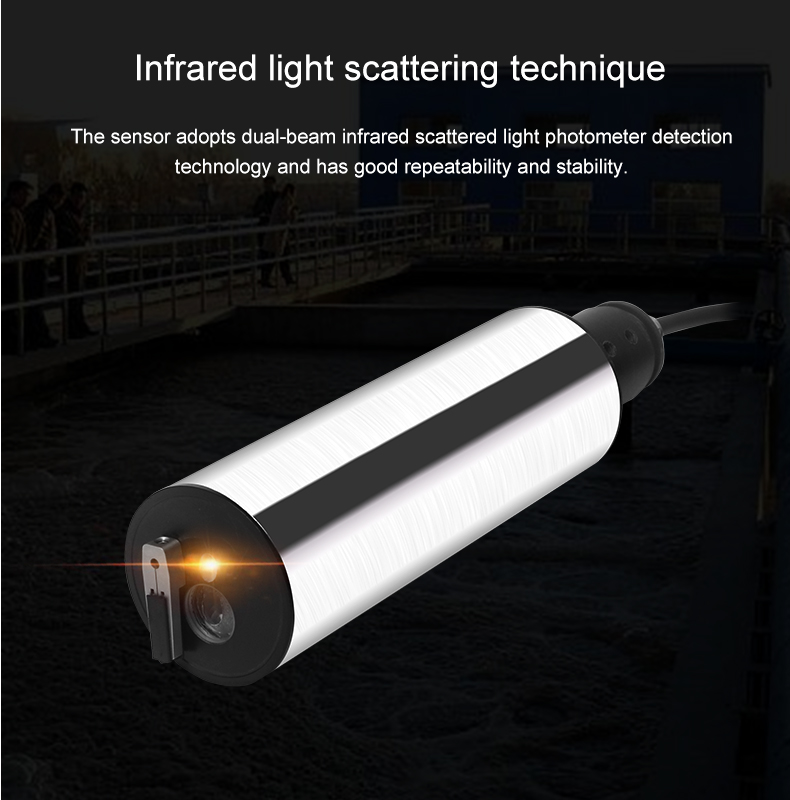

Working principle

The PTU200 turbidity device with an effective turbidity sensor measures turbidity based on how suspended particles scatter light within the fluid. The key elements of its working principle include:

• Light Emission: A stable light source projects a beam into the water sample.

• Particle Interaction: Suspended particles cause the light to scatter at various angles.

• Optical Detection: Photodetectors positioned around the sensor collect the scattered light.

• Signal Conversion: The intensity of the scattered light is converted into an electrical signal that corresponds to the turbidity level.

This optical method allows the instrument to produce consistent measurements even when water color or sample composition varies, making it highly suitable for online applications where conditions change dynamically.

Key features

The PTU200 Turbidity Meter is engineered to deliver reliable online turbidity data and seamless integration into industrial systems. Its principal features include:

• Optical Scattered Light Detection: Utilizes a standard optical method to measure turbidity based on light scatter from suspended particles.
• Wide Measurement Range: Suitable for applications requiring detection from low to relatively high turbidity levels.

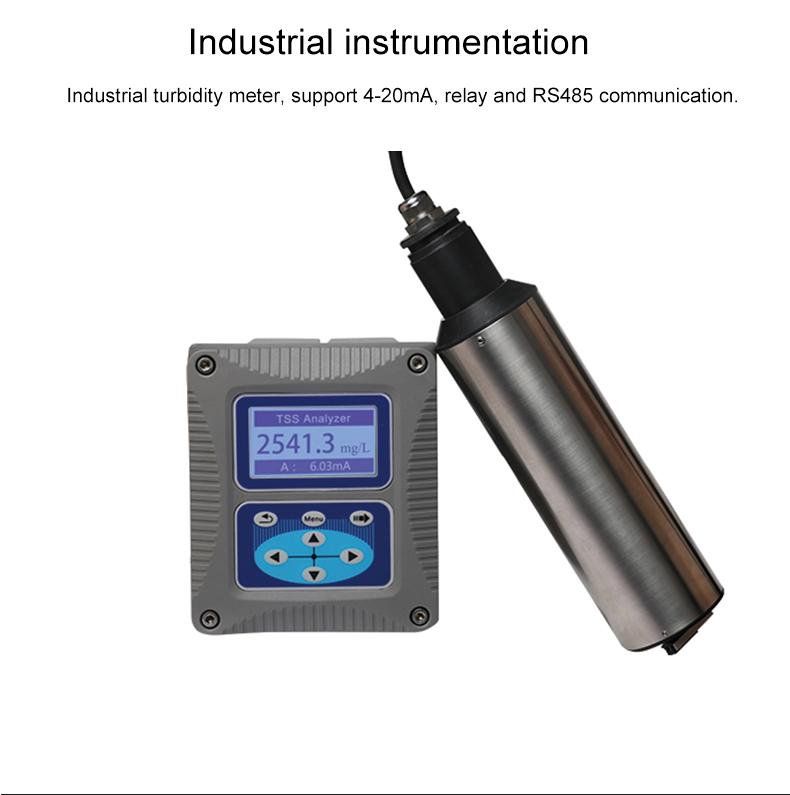

• Multiple Output Interfaces: Supports 4–20 mA current output and RS485 digital communication (Modbus) for versatile system connectivity.

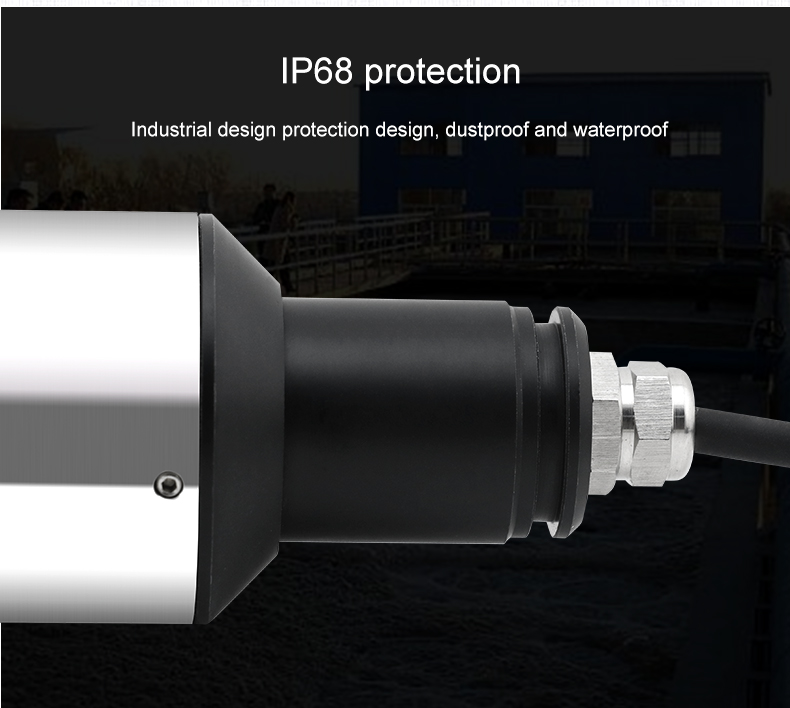

• Industrial Construction: Designed for continuous use in process environments, ensuring long-term stability and consistent performance.
• Clear Display and Easy Configuration: Backlit LCD provides real-time turbidity readings and system status, simplifying on-site monitoring and setup.
• Configurable Control Functions: Relay outputs can be programmed for alarms or control actions based on user-defined thresholds.

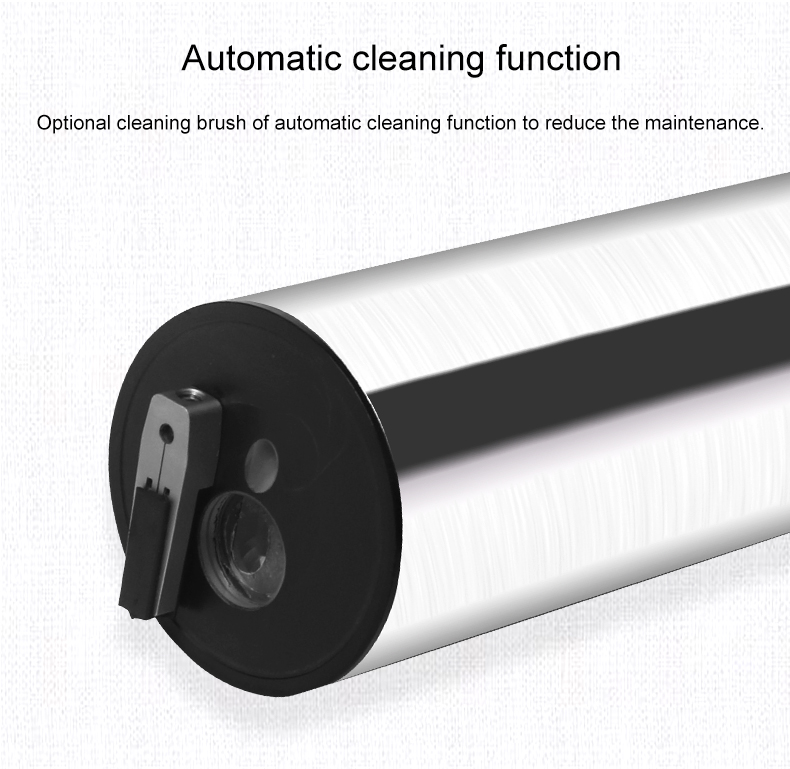

• Low Maintenance Requirements: Optical design reduces routine maintenance needs and supports extended service intervals.

Specification

 Applications

The PTU200 Turbidity Meter is suited for a wide range of continuous water clarity monitoring applications across industrial and environmental contexts:

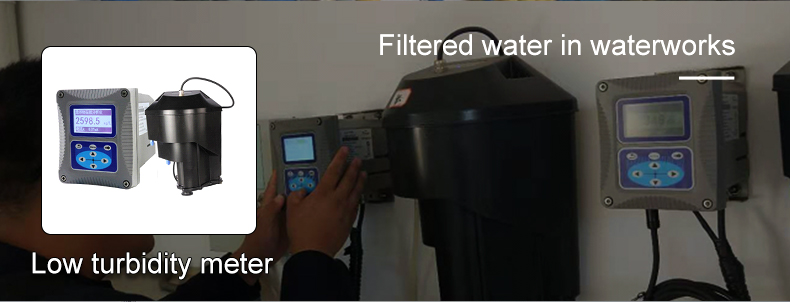

• Drinking Water Treatment: Provides ongoing turbidity measurement to ensure filtration efficiency and finished water quality before distribution.

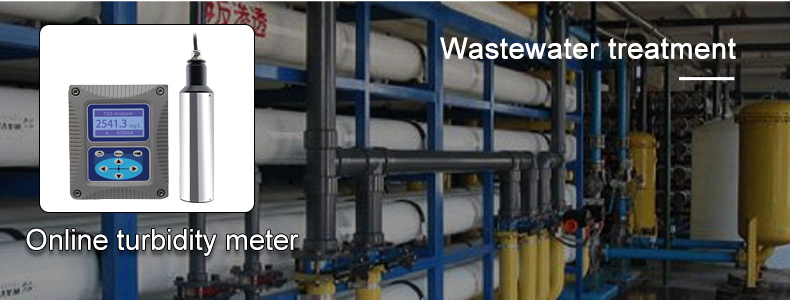

• Wastewater Treatment Plants: Monitors solids removal performance and supports adjustment of treatment processes based on live turbidity data.
• Industrial Process Water: Tracks turbidity in cooling water systems, manufacturing effluents, and other process streams to maintain product quality and equipment integrity.
• Environmental Water Monitoring: Offers real-time turbidity data for rivers, lakes, and surface water monitoring, supporting ecological assessment and reporting.
• Compliance Monitoring: Helps facilities demonstrate adherence to discharge limits and regulatory turbidity standards.
