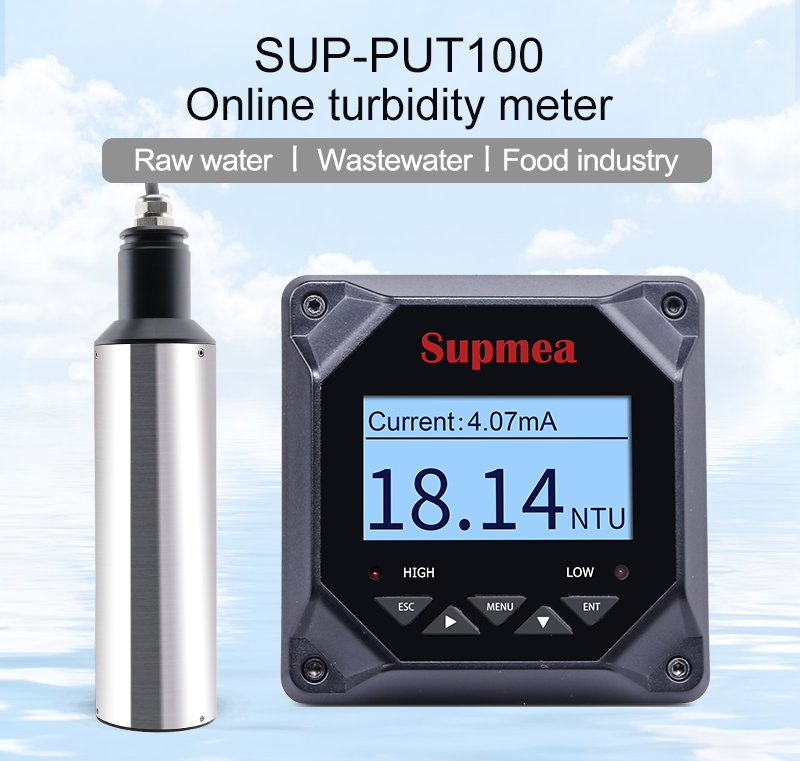

PTU100 Turbidity Meter for Portable Water/Wastewatre Treatment for Industrial Usage
Introduction
The PTU100 Turbidity Meter utilizes optical scattered light measurement to determine the concentration of suspended particles in water. Its design adheres to recognized turbidity detection principles, ensuring consistent and accurate performance across different operating conditions. Built for online deployment, the PTU100 integrates smoothly with industrial control systems, providing continuous turbidity data without manual sampling or frequent calibration.
This turbidity meter combines a robust measurement mechanism with flexible output options and a user-friendly interface to support real-time monitoring, alarm management, and data communication. Whether used in municipal water treatment, industrial process monitoring, or environmental applications, the PTU100 measurement with professional turbidity sensors delivers dependable turbidity insights that help operators respond to process changes faster and with greater confidence.
Working principle

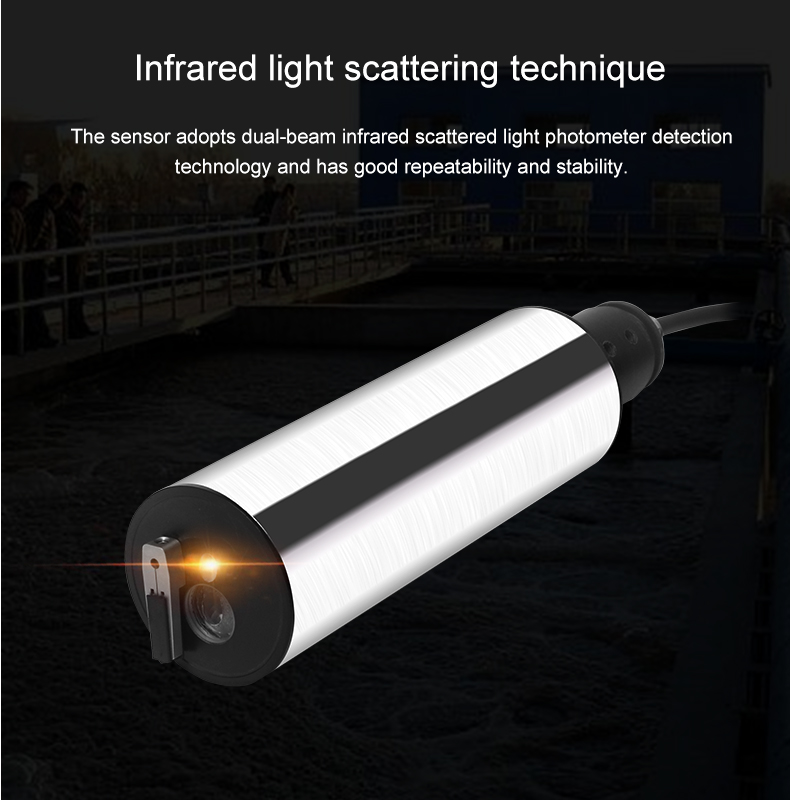

The PTU100 operates on the optical scattered light principle, a widely accepted method for turbidity detection in liquids. Here’s how it works:
-
A stable light source emits a beam into the water being monitored.
-
Suspended particles present in the water cause the light to scatter in various directions.
-
Photodetectors positioned at specific angles capture the scattered light intensity.
-
The meter’s electronics convert this optical signal into an electrical output that corresponds to water turbidity.
Because it focuses on scattered light rather than transmitted light alone, this method provides reliable readings even in conditions where water color, vibration, or variations in particle size might otherwise influence measurement accuracy.
Key features
The PTU100 Turbidity Meter is engineered with features that support continuous online monitoring, automation, and system integration:
- Optical Scattered Light Measurement: Uses an established optical method to achieve consistent turbidity detection across a wide range of conditions.
- Wide Turbidity Range Support: Supports measurement ranges suited for both low and higher turbidity applications.
- Dual Output Interfaces: Includes standard 4–20 mA analog output and RS485 digital communication (Modbus) for integration with PLCs, SCADA, and DCS systems.

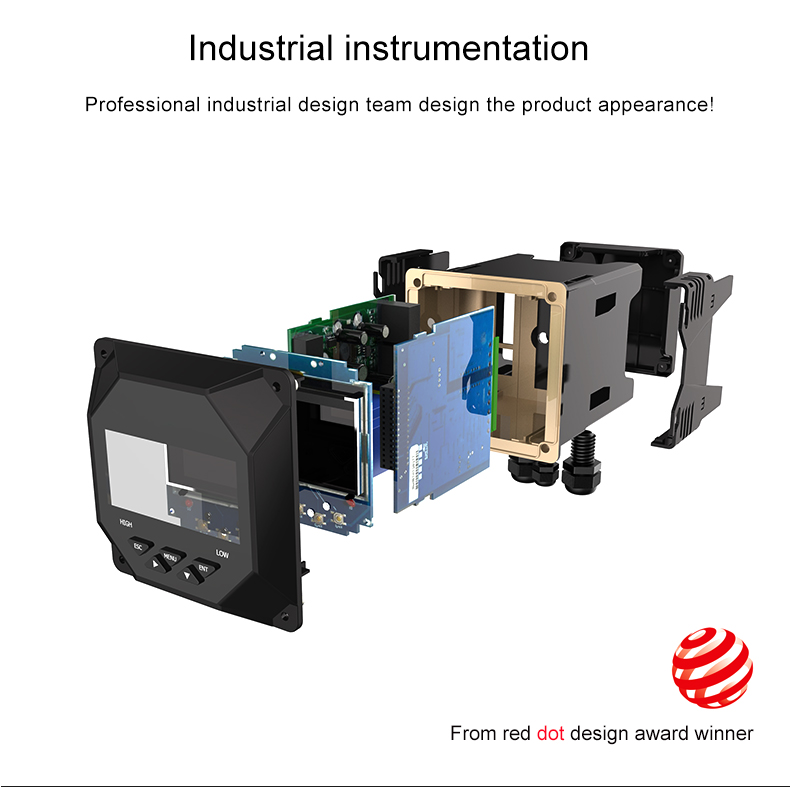

- Industrial-Grade Design: Built for continuous operation in demanding environments with robust construction and stable optical components.
- Easy Integration: Designed with flexible communication and output options to support system automation and remote monitoring.

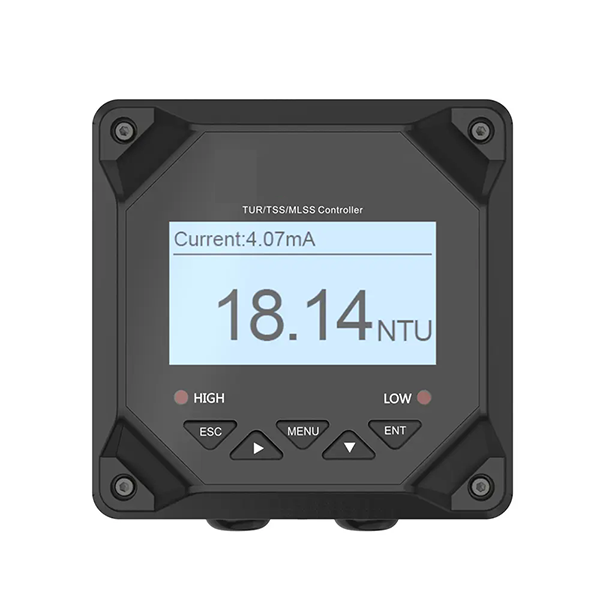

- Clear Local Display: Backlit LCD provides real-time measurement data and status information for onsite visibility.

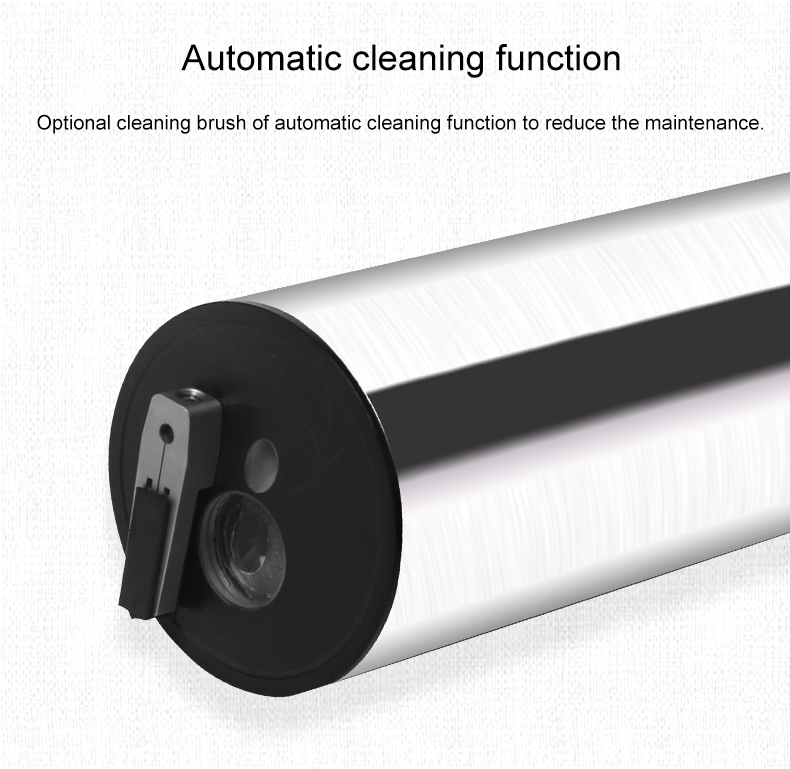

- Maintenance-Friendly Structure: Optical design and calibration procedures promote lower overall maintenance time and cost.
- Alarm and Control Capabilities: Supports configurable threshold alarms to facilitate process control or automated responses.

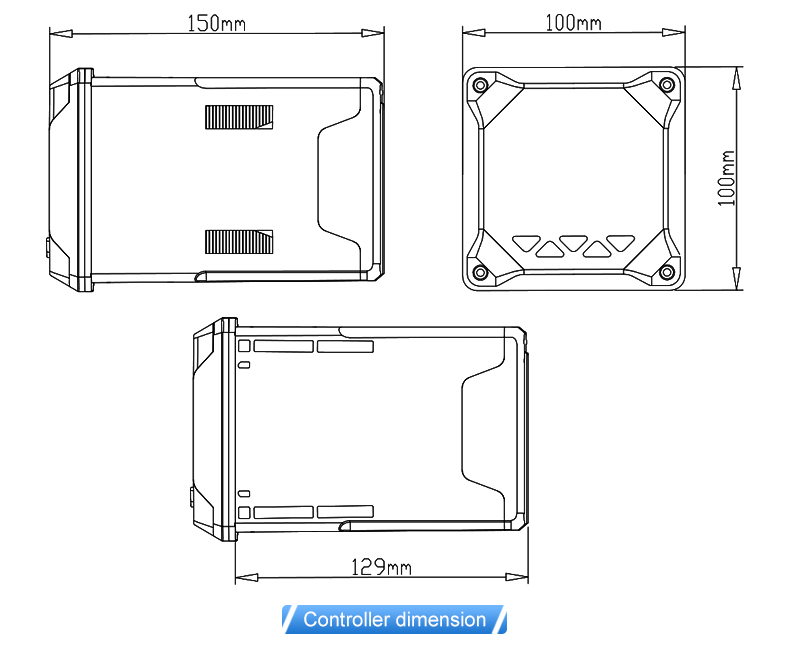

Specification
| Product | Turbidity meter |
| Model | PTU100 |
| Measure range | 0.00 ~ 4000NTU |
| Indication resolution | Less than ± 2% of the measured value, |
| or ± 0.1 NTU Maximax criterion | |
| Pressure range | ≤0.4MPa |
| Flow velocity | ≤2.5m/s、8.2ft/s |
| Storage Temperature | -15~65℃ |
| Operating temp | 0~50℃ |
| Calibration | Sample Calibration, Slope Calibration |
| Cable length | Standard 10-Meter Cable, Max Length: 100 Meters |
| High voltage baffle | Aviation Connector, Cable Connector |
| Main materials | Main Body:SUS316L (Ordinary Version) |
| Titanium Alloy (Seawater Version) | |
| Upper and Lower Cover: PVC; Cable: PVC | |

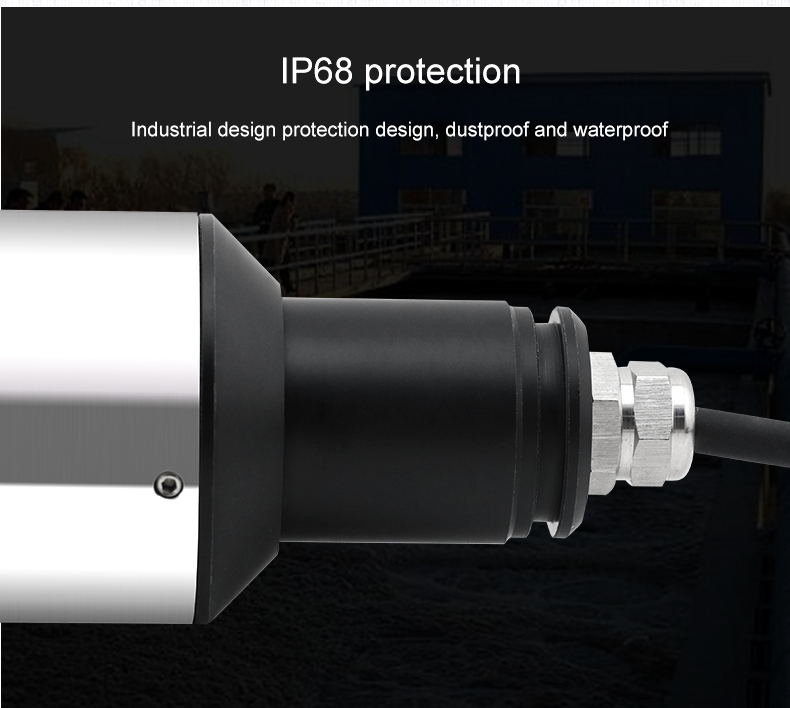

| Ingress protection | IP68(sensor) |
| Power Supply | AC220V±10%,5W Max,50Hz/60Hz |
Applications
The PTU100 Turbidity Meter is suitable for a broad range of online turbidity monitoring applications where continuous visibility into water clarity is essential:

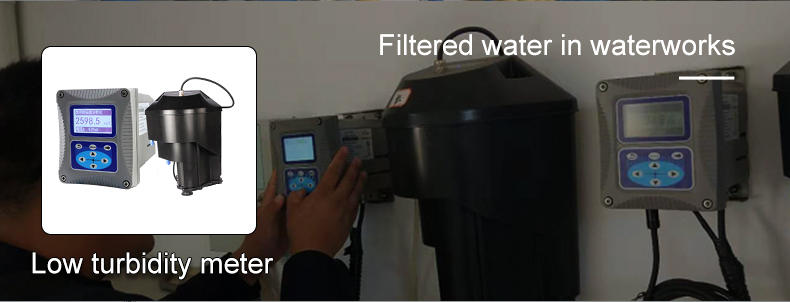

- Drinking Water Treatment: Provides real-time monitoring of turbidity before and after filtration to ensure compliance with quality standards.

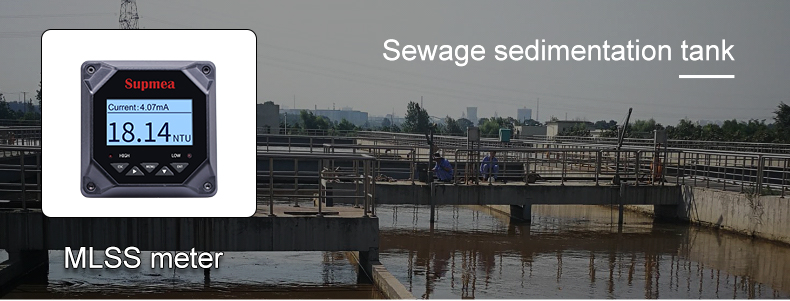

- Wastewater Treatment Plants: Tracks turbidity levels in effluent streams, enabling operators to monitor process performance and optimize treatment stages.
- Industrial Process Water: Monitors turbidity in cooling water, boiler feedwater, and other process streams to protect equipment and support quality control.
- Environmental Water Monitoring: Evaluates turbidity in surface water bodies such as rivers, lakes, and reservoirs for ecological assessment and reporting.
- Food & Beverage and Pharmaceutical Plants: Ensures consistent process conditions by detecting changes in water clarity that could affect product quality.
- Industrial Effluent Compliance: Supports regulatory adherence by providing continuous turbidity data for discharge monitoring.
