The market offers a diverse array of conductivity meters, ranging from sophisticated laboratory instruments to convenient field tools and real-time process monitoring devices. Each type is engineered to fulfill distinct missions. This guide will take you on a comprehensive journey through the design principles, core advantages, critical technological nuances, and unique applications of various conductivity meter types, providing a detailed resource for selecting and utilizing conductivity measurement equipment effectively.

Table of Contents:

1. The Core Components of Conductivity Meters

2. The Operational Principle of Conductivity Meters

3.  All Types of Conductivity Meters

4. Factors to Consider when Choosing a Conductivity Meter

5. How to Calibrate A Conductivity Meter?

6. FAQs

 I. The Core Components of Conductivity Meters

Before delving into the specific conductivity measurement types, let’s explore the fundamental elements of all conductivity meters, which will make the conductivity meter selection much easier:

1. Conductivity Sensor (Probe/Electrode)

This part directly interacts with the solution under test, sensing changes in electrical conductance or resistance between its electrodes to gauge ion concentration.

2. Meter Unit

This electronic component is responsible for generating a precise alternating current (AC) voltage, processing the signal from the sensor, and converting the raw measurement into a readable conductivity value.

3. Temperature Sensor

Conductivity is highly sensitive to temperature variations. Integrated within the probe, the temperature sensor continuously monitors the solution’s temperature and applies necessary temperature compensation, ensuring the accuracy and comparability of measurement results.

II. The Operational Principle of Conductivity Meters

The function theory of a conductivity meter relies on a precise electronic and electrochemical process that measures a solution’s ability to carry an electric current.

Step 1: Generate the current

The conductivity device initiates this measurement by applying a stable alternating current (AC) voltage across the electrodes of the sensor (or probe).

When the sensor is immersed in a solution, dissolved ions (cations and anions) are free to move. Under the influence of the electric field created by the AC voltage, these ions migrate toward the oppositely charged electrodes, creating an electric current that flows through the solution.

The use of AC voltage is crucial because it prevents electrode polarization and degradation, which would otherwise lead to inaccurate readings over time.

Step 2: Calculate the conductance

The meter unit then measures the magnitude of this current (I) flowing through the solution. Using a rearranged form of Ohm’s Law (G = I / V), where V is the applied voltage, the meter calculates the solution’s electrical conductance (G), which refers to the measure of how easily current flows between the specific electrodes within a specific volume of liquid.

Step 3: Determine the specific conductivity

To obtain the specific conductivity (κ), an intrinsic property independent of the probe’s geometry, the measured conductance (G) must be normalized.

This is achieved by multiplying the conductance by the probe’s fixed cell constant (K), which is purely a geometric factor defined by the distance between the electrodes and their effective surface area.

The final, specific conductivity is thus calculated using the relationship: κ = G·K.

 III. All Types of Conductivity Meters

Based on application scenarios and required precision, conductivity meters can be broadly categorized. This post collects them all and walks you through them one by one for a detailed understanding.

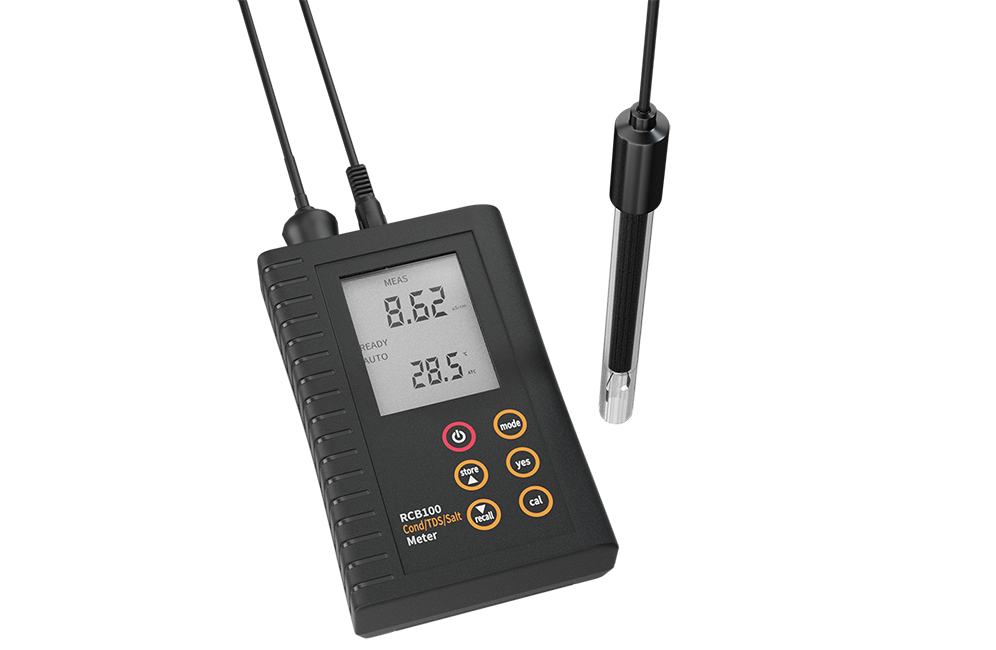

1. Portable Conductivity Meters

Portable conductivity meters are specialized analytical instruments engineered for high-efficiency, on-site diagnostics. Their fundamental design philosophy prioritizes a critical trifecta: lightweight construction, robust durability, and exceptional portability.

This feature ensures that laboratory-grade measurement precision is reliably delivered directly at the sample solution source, which effectively minimizes logistical delays and maximizes operational flexibility.

The portable conductivity tools are specifically built for demanding fieldwork. To achieve sustained performance under harsh outdoor and industrial conditions, they feature battery-operated power and are meticulously engineered with dust-proof and waterproof designs (often specified by an IP rating).

The meters significantly boost operational efficiency in the field by offering rapid response times for instant results, coupled with integrated data logging capabilities. This combination makes them the definitive choice for rapid water quality assessment across remote geographical locations and expansive industrial production floors.

Wide Applications of the Portable Conductivity Meter

The flexibility and durability of the portable conductivity meters make them indispensable across several key industries:

1. Environmental monitoring: The portable EC meters are essential tools for water quality assessment, performing surveys of rivers, lakes, and groundwater, and identifying pollution sources.

2. Agriculture and aquaculture: These lightweight meters are used to monitor irrigation water, hydroponic nutrient solutions, and fish pond water quality to maintain optimal salinity and nutrient concentrations.

3. Industrial on-site checks: The meters also provide rapid, preliminary testing of process waters, such as cooling tower water, boiler water, and industrial wastewater discharges.

4. Educational and research fieldwork: The convenience and ease of use features make the portable meters perfect for outdoor teaching and basic field experiments, offering hands-on data collection for students and researchers.

This probe’s versatility ensures the meter offers flexibility in diverse environmental settings, covering everything from relatively pure water to more saline solutions.

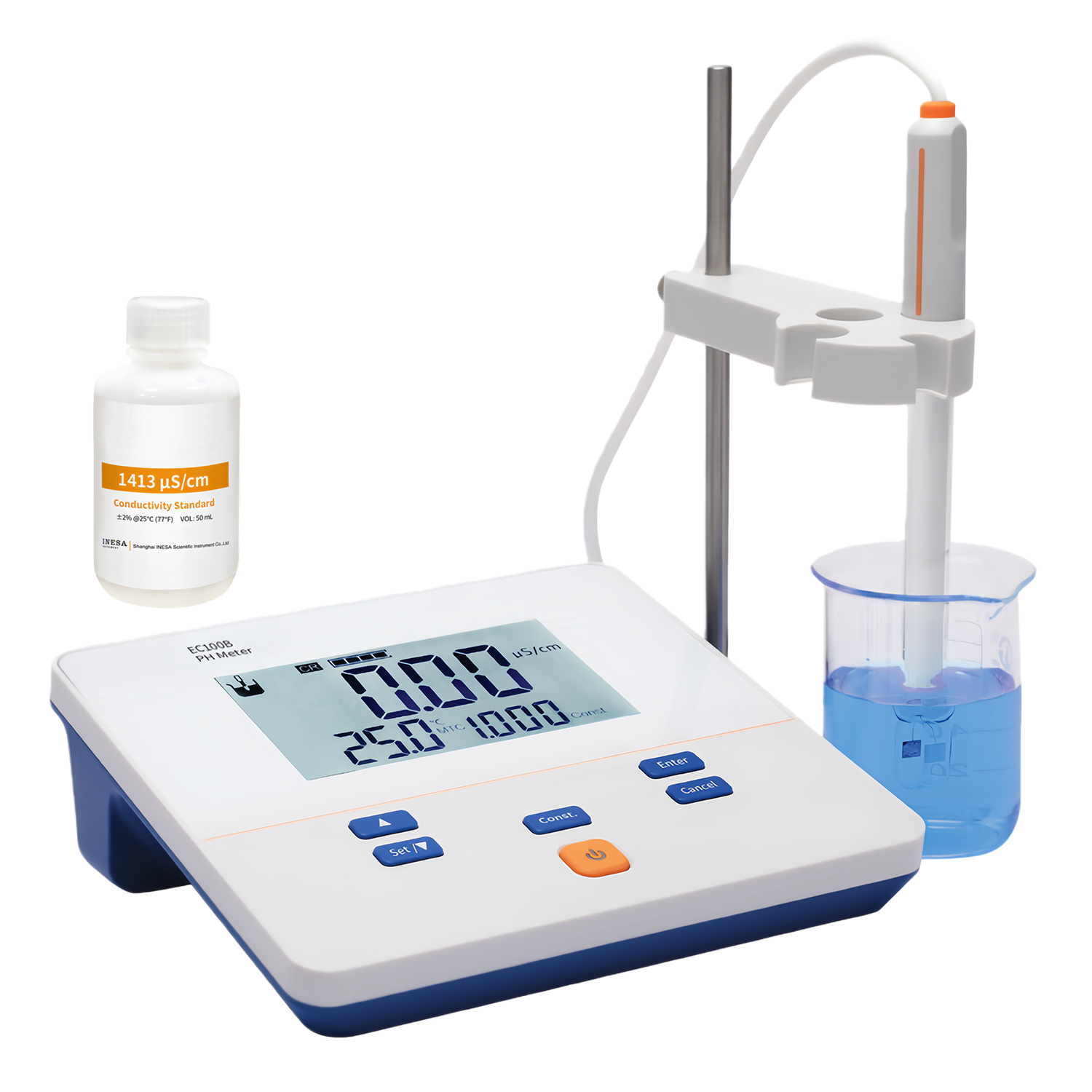

2. Bench-top Conductivity Meters

The benchtop conductivity meter is a high-performance electrochemistry instrument specifically for rigorous research and demanding Quality Control (QC) environments, guaranteeing uncompromised accuracy and operational stability for critical analytical data. Characterized by a multi-functional and robust design, it provides extensive measurement capabilities across a wide range, from 0 µS/cm up to 100 mS/cm.

The benchtop conductivity meter represents the apex of electrochemistry instrumentation for demanding research and rigorous Quality Control (QC) environments. With high precision, multi-functional, and robust functions, this bench-top meter is centered on delivering uncompromised accuracy and stability, which ensures the integrity of critical analytical data.

Designed to maximize laboratory efficiency and ensure data reliability, this meter makes it possible for simultaneous measurement of core parameters like EC, TDS, and Salinity, which also involves the optional capabilities of pH,  ORP, and ISE, on the basis of its workflow being streamlined through the multi-parameter measuring integration.

This rugged device acts as an all-in-one testing solution, boosting laboratory throughput. Furthermore, advanced data management (secure storage, export, print) ensures full compliance with GLP/GMP standards, providing traceable and audit-compliant data that minimizes regulatory risk.

Finally, through the integration of various probe types and specific K-values (cell constants), the optimal performance across diverse sample matrices is guaranteed, from ultrapure water to high-concentration solutions.

Wide Applications of Bench-top Conductivity Meters

This high-performance bench-top system is crucial for organizations requiring definitive, high-confidence analytical results:

1. Pharmaceutical & Food/Beverage QC: The bench-top meter is essential for rigorous quality control (QC) testing of both raw materials and final products, where regulatory compliance is non-negotiable.

2. Research and Scientific Development: It provides the high precision necessary for new material validation, chemical synthesis monitoring, and process optimization.

3. Industrial water management: The bench-top meter is critical for precise water quality analysis across ultrapure water (UPW) systems, drinking water facilities, and industrial wastewater treatment, helping facilities maintain operational efficiency and environmental standards.

4. Chemical laboratories: Utilized for basic tasks like accurate solution preparation, chemical characterization, and high-precision titration endpoint determination, the meter forms the bedrock of laboratory accuracy.

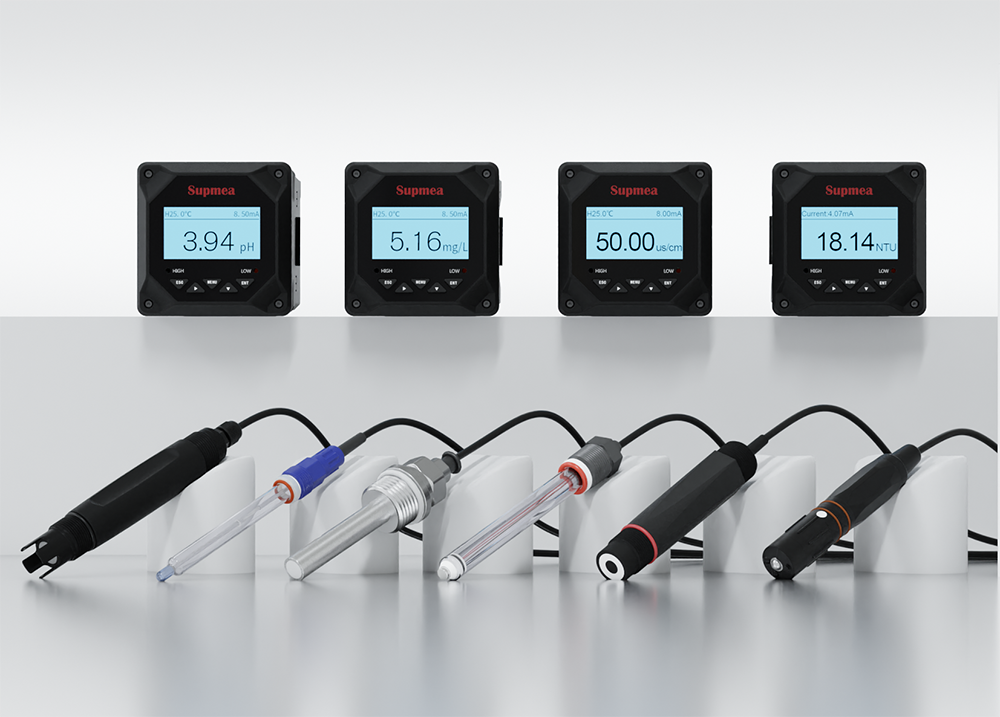

3. Online/Industrial Conductivity Meters

Designed specifically for automated process environments, the series of online/industrial conductivity meters embodies a design philosophy on continuous, real-time monitoring, high reliability, and seamless integration into existing control architectures.

These rugged, dedicated instruments replace manual sampling with 24/7 uninterrupted data streams, acting as the critical sensor node for process optimization, control, and safeguarding expensive equipment. They are essential for any operation where continuous monitoring of water quality or solution concentration is vital for maintaining product quality, efficiency, and regulatory compliance.

These industrial conductivity meters provide guaranteed real-time process control through continuous data delivery for instant anomaly detection. They feature rugged, low-maintenance designs, often utilizing advanced inductive sensors, for use in harsh media, while ensuring precision in critical applications like ultrapure water. Its seamless integration into PLC/DCS systems is achieved via standard 4-20mA and digital protocols.

Wide Applications of Online Industrial Conductivity Meters

The continuous monitoring capability of these online or industrial EC meters is leveraged across high-stakes industrial processes:

1. Industrial Water Treatment & Management: The online industrial meters are used to critically monitor the efficiency of Reverse Osmosis (RO) units, ion exchange systems, and EDI modules. They are also vital for continuous concentration management in boiler water and cooling towers, optimizing cycles of concentration and chemical usage.

2. Chemical Production & Process Control: The meters are essential for online monitoring of acid/base concentrations, reaction progress tracking, and product purity verification, ensuring consistent chemical formulations and process yields.

3. High-Purity Manufacturing: Mandatory for equipment safety and product efficacy, these online instruments are critically deployed in pharmaceutical and power generation facilities for the rigorous, online monitoring of ultrapure water production, condensate, and feedwater quality, ensuring complete contamination control.

4. Food and Beverage Hygiene: Used for online control of CIP (Clean-in-Place) solution concentrations and precise product mixing ratios, the online conductivity meters meet the sanitation standards perfectly while minimizing water and chemical waste.

4. Pocket Conductivity Testers (Pen-style)

These pen-style conductivity testers are engineered to provide unmatched convenience and exceptional value for general water quality assessment, making instant analytical power highly accessible. The fundamental appeal lies in their extreme portability: the ultra-compact, pen-sized design allows for true on-the-go measurement, eliminating the logistical complexity of laboratory setups.

Designed for all user levels, these meters emphasize plug-and-play simplicity. Operation typically involves minimal buttons, ensuring maximum user accessibility and providing immediate, actionable insights without the need for specialized training. This ease of use supports users requiring quick, indicative measurements of solution purity and concentration rather than high-precision, audited data.

Furthermore, these tools are highly cost-effective. Positioned at a lower price point than benchtop instruments, they make reliable water testing affordable for budget-conscious individuals and the general public. A key functional feature is the ability to provide a quick TDS estimation alongside the primary EC reading. While based on a standardized conversion factor, this feature offers an immediate snapshot of general water quality, fulfilling the needs of users searching for a simple, reliable water tester.

Wide Applications of Pen EC Meter

The ultra-compact pen-style conductivity tester is perfectly suited for small-room laboratories, tight growing operations, and field use where space efficiency is critical.

1. Consumer and Home Water Use: Ideal for simple testing of drinking water purity, aquarium water health, or swimming pool water quality. This is a primary target for homeowners and hobbyists.

2. Small-Scale Hydroponics and Gardening: Used for basic checks of nutrient solution concentrations, providing amateur and small-scale growers with essential data to manage plant health without specialized equipment.

3. Educational and Outreach Programs: Their simplicity and low cost make them perfect teaching tools to help students and the public understand the concept of conductivity and its relation to water dissolved solids.

IV. Factors to Consider when Choosing a Conductivity Meter

When choosing a conductivity meter, the selection must go with the specific needs of the applications for reliable results and efficient operation. Below are the significant factors that you ought to take into consideration during the EC meter selection:

Factor 1: Measurement Range and Accuracy

Measurement range and accuracy are the initial, fundamental considerations. You must confirm that the instrument’s operational limits are suitable for the conductivity values of your target solutions.

Simultaneously, assess the required accuracy and precision; the meter’s technical specifications must align with the necessary level of detail for your quality standards or research objectives.

Factor 2: Environmental Factors

Beyond core measurement capability, environmental factors demand attention. Temperature compensation is an essential feature if the solution or ambient conditions fluctuate, as it automatically corrects readings to a standard reference temperature, ensuring consistency.

Furthermore, the selection of the correct probe is non-negotiable. Anyway, different probe types are optimized for distinct applications and media. Just choosing a probe that is both chemically compatible with the tested purpose and physically suited to the tested environment.

Factor 3: Operational Efficiency and Data Integration

Last but not least, the operational efficiency and data integration should be taken into consideration. The User Interface should include intuitive controls and a clear display to minimize training time and potential errors.

Then, assess the connectivity requirements. Determine if you need data logging, external device communication, or seamless integration with Laboratory Information Management Systems (LIMS) for streamlined reporting and compliance.

V. How to Calibrate A Conductivity Meter？

Calibrating a conductivity meter is essential for accurate measurements. The process uses a standard solution of known conductivity to adjust the meter’s internal cell constant, which involves five main steps: preparation, cleaning, temperature equilibration, calibration, and verification.

1. Preparation

Step 1: Determine the fresh conductivity standard solution close to the usual sample range (e.g., 1413 µS/cm), distilled or deionized water for rinsing, and clean beakers.

Note that do not re-use the calibration solutions since they are easily contaminated and have no buffering capacity.

2. Cleaning and Rinsing

Step 1: Thoroughly rinse the conductivity probe with distilled or deionized water to remove any sample residue.

Step 2: Gently dab the probe dry with a soft, lint-free cloth or tissue. Also, avoid touching the electrodes with fingers since the probe can potentially be contaminated.

3. Temperature Equilibration

Step 1: Pour the standard into the targeted vessel.

Step 2: Fully immerse the conductivity probe in the standard solution. Ensure the electrodes are completely covered and that no air bubbles are trapped between them (gently tap or swirl the probe to release any bubbles).

Step 3: Allow the probe and the solution to sit for 5-10 minutes to reach thermal equilibrium. Conductivity is highly dependent on temperature, so this step is critical for accuracy.

4. Calibration

Step 1: Start the calibration mode on the meter, which usually involves pressing and holding a “CAL” or “Function” button based on the meter’s manual.

Step 2: For a manual meter, adjust the meter’s displayed value using arrow buttons or a potentiometer to match the known conductivity value of the standard solution at the current temperature.

For an automatic meter, simply confirm the standard’s value, allow the meter to adjust, and then save the new cell constant.

5. Verification

Step 1: Rinse the probe again with distilled water. Then, measure a fresh portion of the same calibration standard or a different, second standard if performing a multi-point calibration.

Step 2: The meter reading should be very close to the standard’s known value, typically within ±1% to ±2%. If the reading is beyond the acceptable range, clean the probe more thoroughly and repeat the entire calibration process.

FAQs

Q1. What is conductivity?

Conductivity refers to the ability of a substance to conduct an electric current. It is a measure of the concentration of ions present in a solution.

Q2. What units are used to measure conductivity?

Conductivity is typically measured in Siemens per meter (S/m) or microsiemens per centimeter (μS/cm).

Q3. Can a conductivity meter measure the purity of water?

Yes, conductivity meters are commonly used to assess the purity of water. Higher conductivity values can indicate the presence of impurities or dissolved ions.

Q4. Are conductivity meters suitable for high-temperature measurements?

Yes, some conductivity meters are designed to withstand high temperatures and can accurately measure conductivity in hot solutions.

Q5. How often should I calibrate my conductivity meter?

The calibration frequency depends on the specific meter and its usage. It is recommended to follow the manufacturer’s guidelines for calibration intervals.
