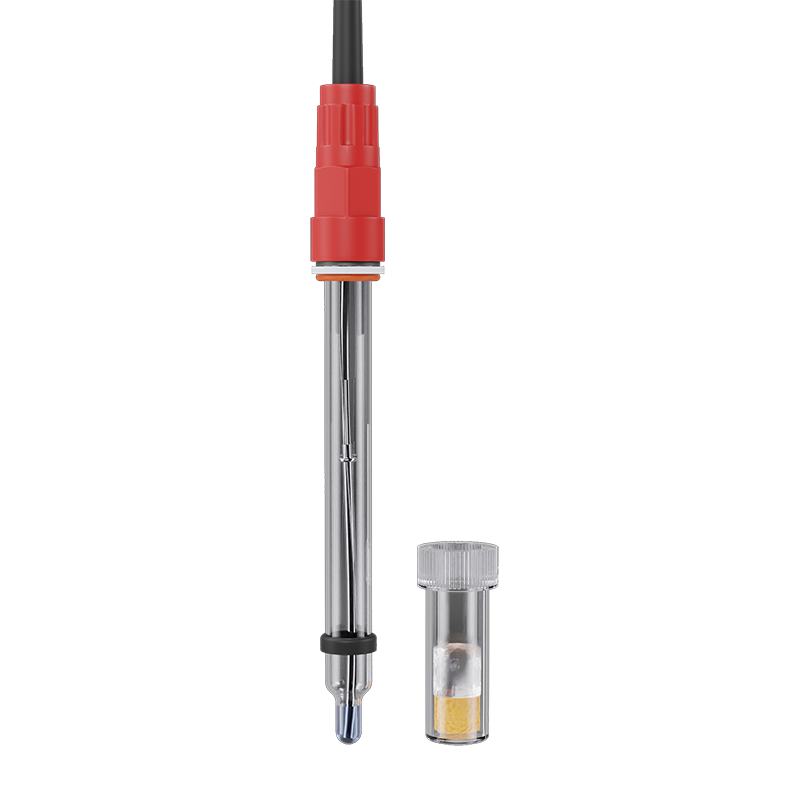

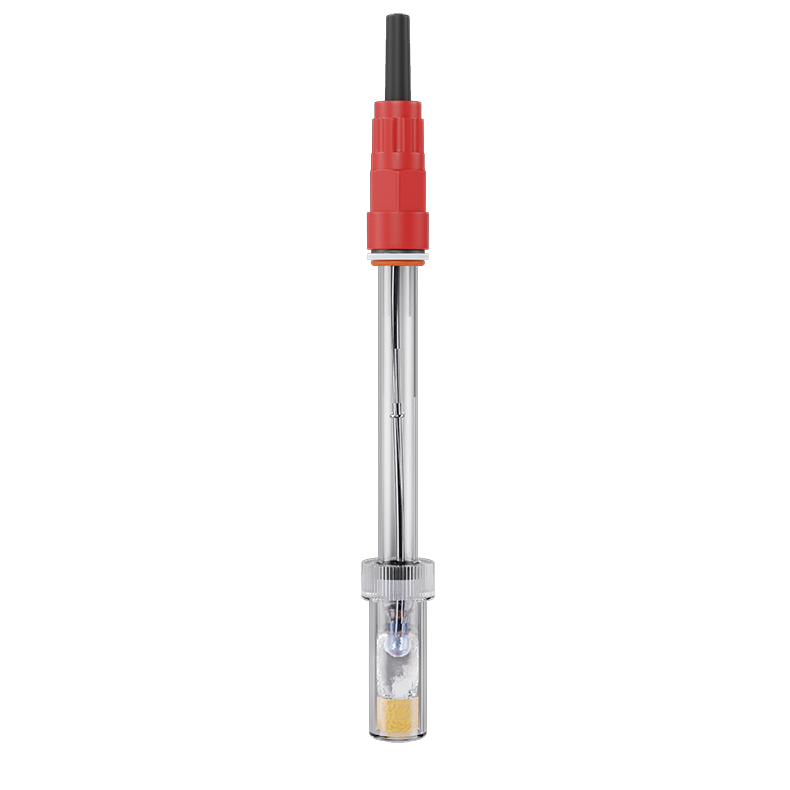

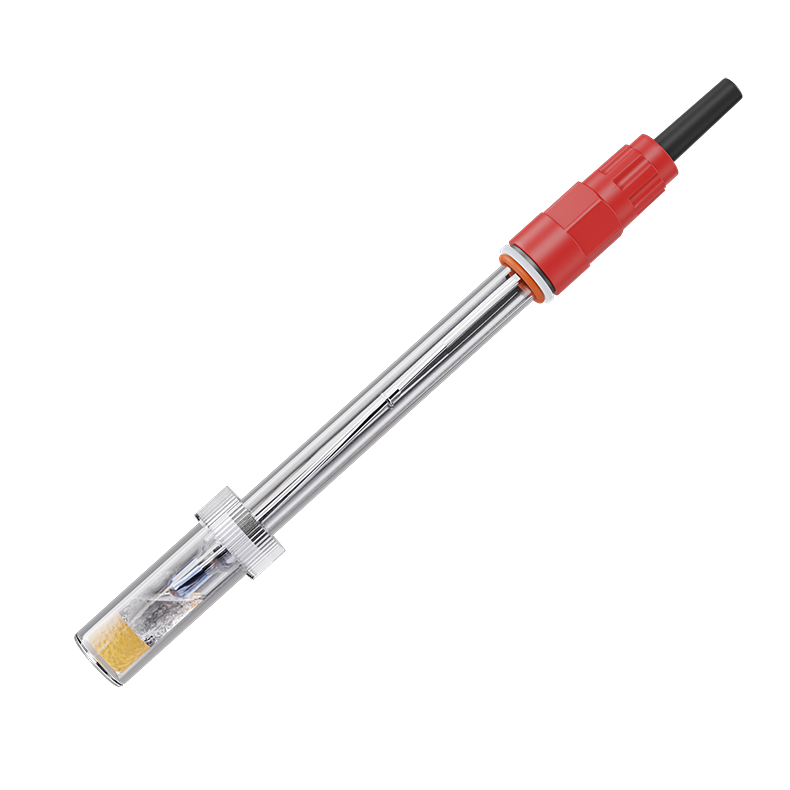

PH5050 Online Portable pH Sensor for High Temperature with PT100/PT1000
Introduction
Engineered for the toughest industrial settings, the PH5050 lineup is a high-temperature pH electrode designed to deliver accurate, real-time pH readings in processes operating at temperatures ranging from 0 to 120°C.
Using a specialized low-impedance glass membrane and integrated temperature compensation (NTC10K/Pt100/Pt1000), it transforms ion activity into stable EMF signals, ensuring reliable performance where standard sensors fail.
Perfect for inline or immersion use in chemical plants, wastewater systems, or high-heat production lines, this rugged probe minimizes drift, resists fouling, and simplifies maintenance for maximum uptime and process control.
Key Points
The PH5050H sensor is built for high-temp resistance and precision, incorporating proven design elements like low-noise cabling and clog-resistant junctions to ensure longevity in challenging conditions. Here’s what sets it apart:
- High-Temperature Durability: Operates seamlessly in environments up to 120°C, using specialized low-impedance glass to prevent thermal degradation and maintain signal integrity.
- Wide pH Measurement Range: Covers 0-14 pH with a zero point of 7 ± 0.5 pH and internal impedance of 150-250 MΩ at 25°C, providing accurate readings across acidic to alkaline media.
- Rapid Response and Stability: Achieves practical response time under 1 minute, with excellent slope (>98%) for quick stabilization and minimal drift over time.
- Easy Installation and Maintenance: Features Pg13.5 or 3/4″ NPT threads for simple inline or immersion mounting; no supplemental electrolyte required, reducing upkeep compared to traditional designs.
- Integrated Temperature Compensation: Built-in NTC 10K, Pt100, or Pt1000 options for automatic adjustment, ensuring pH accuracy regardless of process fluctuations.
- Chemical Resistance: Equipped with a porous Teflon or ceramic salt bridge to resist clogging in contaminated or viscous solutions, extending sensor life in real-world use.
- Versatile Connectivity: Compatible with BNC or VP connectors and low-noise cables supporting signal transmission over 40 meters without interference.
Specification
| Products | Plastic pH sensor |
| Model no | PH5050 |
| Range | 0-14 pH |
| Zero point | 7 ± 0.5 pH |
| Internal impedance | 150-250 MΩ(25℃) |
| Practical response time | < 1 min |
| Installation thread | G13.5 Pipe Thread |
| NTC | 10 KΩ/2.252KΩ/Pt100/Pt1000 |
| Temp | 0-120℃ for general cables |
| Pressure resistance | 1 ~ 6 Bar |
| Connection | Low-noise cable |
Applications
The PH5050 excels in environments where standard pH sensors fail due to heat or aggressive media, making it a go-to for industries requiring continuous monitoring. Its design supports both immersion and inline installations, with applications including:
- Chemical Processing: Monitors pH in high-temperature reactors and caustic solutions, ensuring reaction efficiency and safety in petrochemical and pharmaceutical production.
- Water and Wastewater Treatment: Tracks acidity in hot effluent streams or boiler feedwater, aiding compliance with environmental regulations and preventing scaling.
- Metallurgy and Mining: Measures pH in leaching processes or metal refining baths up to 130°C, optimizing extraction yields and reducing corrosion.
- Food and Beverage: Controls pH in pasteurization or brewing lines, maintaining product quality without compromising hygiene standards.
- Power Generation: Integrates into cooling towers or scrubbers for real-time pH adjustment, enhancing energy efficiency and equipment longevity.
