Specification
| Product | Economic 3-digit Display Fuzzy PID Temperature Controller |
| Model | SUP-130T |
| Dimension | C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm |
| Measurement accuracy | ±0.3%FS |
| Transmission output | Analog output—-4-20mA(RL≤500Ω)、1-5v（RL≥250kΩ） |
| Alarm Output | With upper and lower limit alarm function, with alarm return difference setting；Relay contact capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load） AC220V/2A(big)DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply | AC/DC100~240V (AC/50-60Hz) Power consumption≤5W DC 12~36V Power consumption≤3W |
| Use environment | Operating temperature（-10~50℃）No condensation, no icing |
-
Introduction
Economic 3-digit Display Fuzzy PID Temperature Controller is in modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C. The instrument displays with dual row 3-digit numeric tube, with a variety of RTD/TC input signal types optional with an accuracy of 0.3%; 5 sizes optional, supporting 2-way alarm functions, with analogue control output or switch control output function, under accurate control without overshoot. Optical isolation for input terminal, output terminal, a power supply terminal, 100-240V AC/DC or 12-36V DC switching power supply, standard snap-on installation, ambient temperature at 0-50 °C, and the relative humidity of 5-85% RH (no condensation).
Terminal Assignments and Dimensions

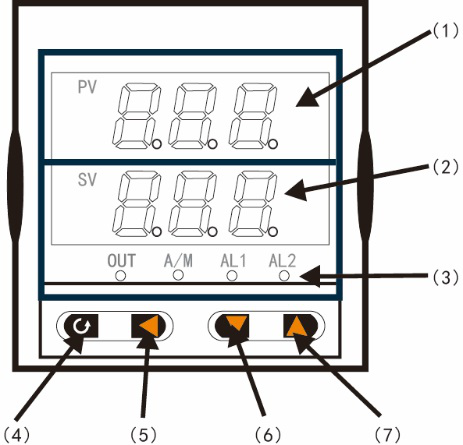

(1) PV display window (measured value)
(2) SV display window
In measurement state, it displays the control target value;
In parameters setting state, it displays the setpoint.
(3) The first alarm (AL1) and the second alarm (AL2) indicators, manual light (A/M) and output light (OUT)
(4) Confirm key
(5) Shift key
(6) Down key
(7) Up key
High brightness display
Dual-screen three-digit LED digital display PC mask
High transparency, smooth surface
Good aging resistance
Touch button
Use high-quality silicone buttons
Sensitive operation and long service life
Good touch and good recovery
Ventilation and heat dissipation
Open holes on both sides, convection ventilation to ensure long-term high temperature operation of the instrument
Limit cover protection
Wiring diagram—-to ensure correct wiring
Wiring cover — to ensure wiring safety
Embedded installation
Dial hole, standard size
Fastened by buckle, easy to install
Input signal type list:
| Graduation Number Pn | Signal type | Measure range | Graduation Number Pn | Signal type | Measure range |
| 0 | TC B | 100~999℃ | 5 | TC J | 0～999℃ |
| 1 | TC S | 0～999℃ | 6 | TC R | 0～999℃ |
| 2 | TC K | 0～999℃ | 7 | TC N | 0～999℃ |
| 3 | TC E | 0～999℃ | 11 | RTD Cu50 | -50～150℃ |
| 4 | TC T | 0～400℃ | 14 | RTD Pt100 | -199～650℃ |

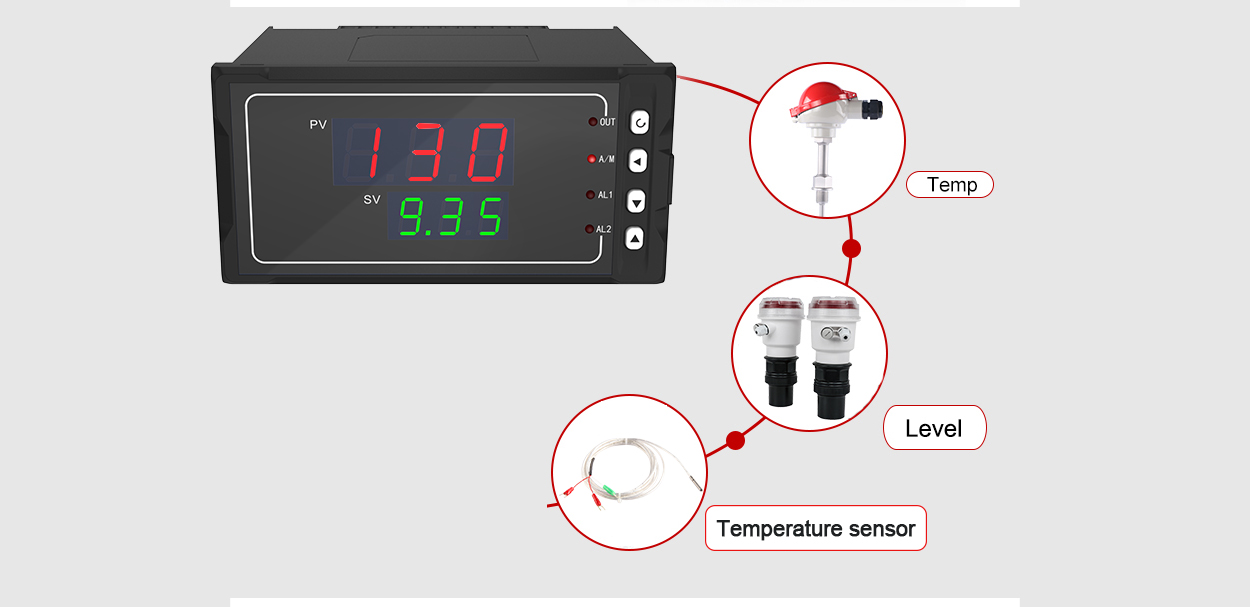

Product detail pictures:
