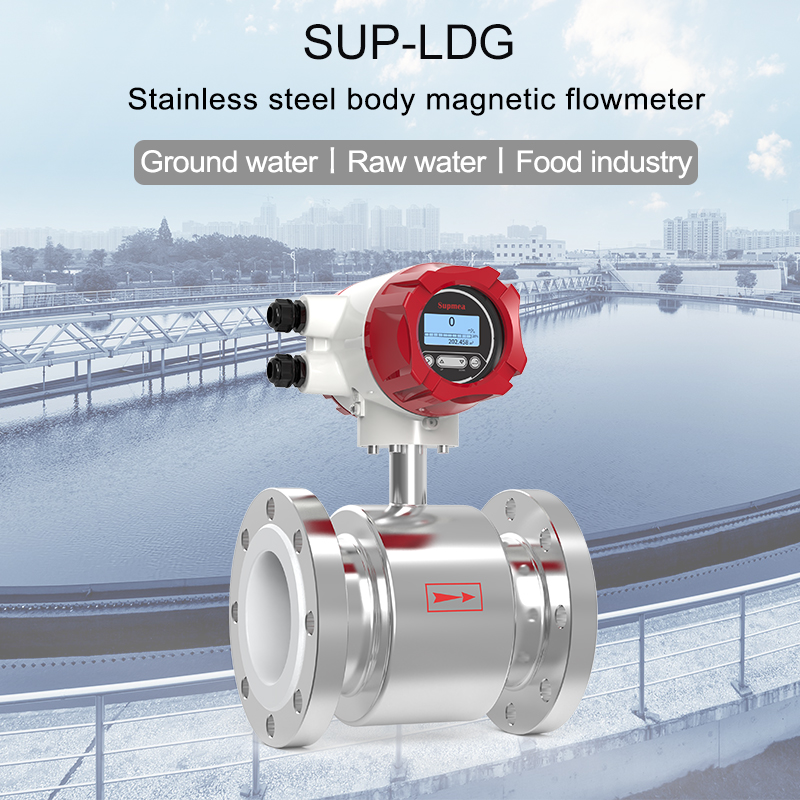

Buy Water Flow Meter Sensor Manufacturer – SUP-LDG Stainless steel body electromagnetic flowmeter – Sinomeasure
Buy Water Flow Meter Sensor Manufacturer – SUP-LDG Stainless steel body electromagnetic flowmeter – Sinomeasure Detail:
-
Specification
| Product | Electromagnetic flowmeter |
| Model | SUP-LDG |
| Diameter nominal | DN15~DN1000 |
| Nominal pressure | 0.6~4.0MPa |
| Accuracy | ±0.5%，±2mm/s(flowrate<1m/s) |
| Liner material | PFA,F46,Neoprene,PTFE,FEP |
| Electrode material | Stainless steel SUS316, Hastelloy C, Titanium, |
| Tantalum Platinum-iridium | |
| Medium temperature | Integral type: -10℃~80℃ |
| Split type: -25℃~180℃ | |
| Ambient Temperature | -10℃~60℃ |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |
| Structure type | Tegral type, split type |
| Ingress protection | IP65 |
| Product standard | JB/T 9248-1999 Electormagnetic Flowmeter |
-
Measuring principle
Mag meter works based on Faraday’s law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s. An Electromagnetic Flowmeter is a volumetric Flowmeter that measures the flow velocity of a liquid through a pipe.
The measurement principle of magnetic flowmeters can be described as follows: when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:
E=K×B×V×D
| Where: E－Induced electromotive force K－Meter constant B－Magnetic induction density V－Average flow speed in cross-section of measuring tube D－Inner diameter of measuring tube |
 |
-
Introduction

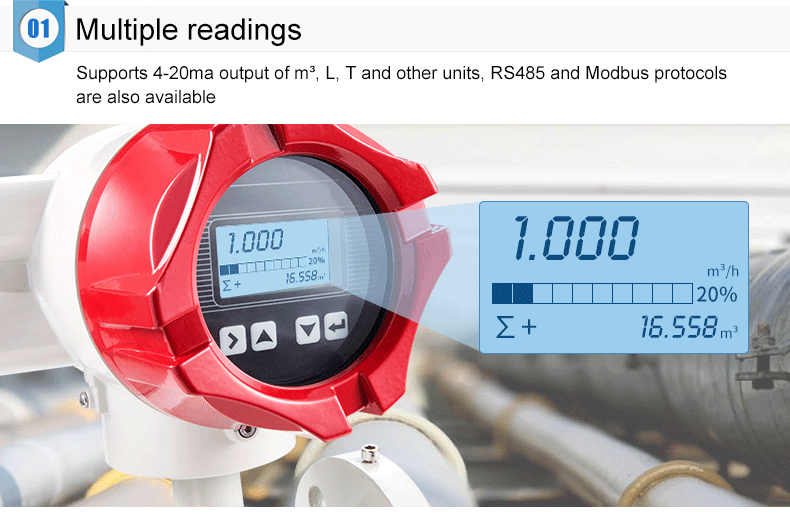

SUP-LDG electromagnetic flowmeter is applicable for all conductive liquids. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer. Can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.
Noted: the product strictly prohibited to be used in explosion-proof occasions.
-
Application

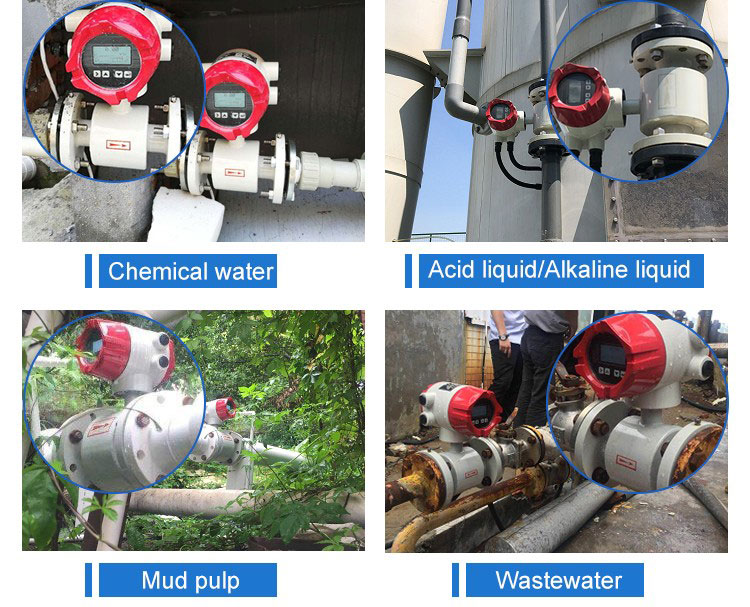

Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
Description
-
Automatic calibration line
Product detail pictures:
